Genuine Vestel Tumble Dryer Capacitor 15µF CBB65A M8 for Logik Bush 32041424
Genuine Vestel Tumble Dryer Capacitor 15µF CBB65A M8 for Logik Bush 32041424

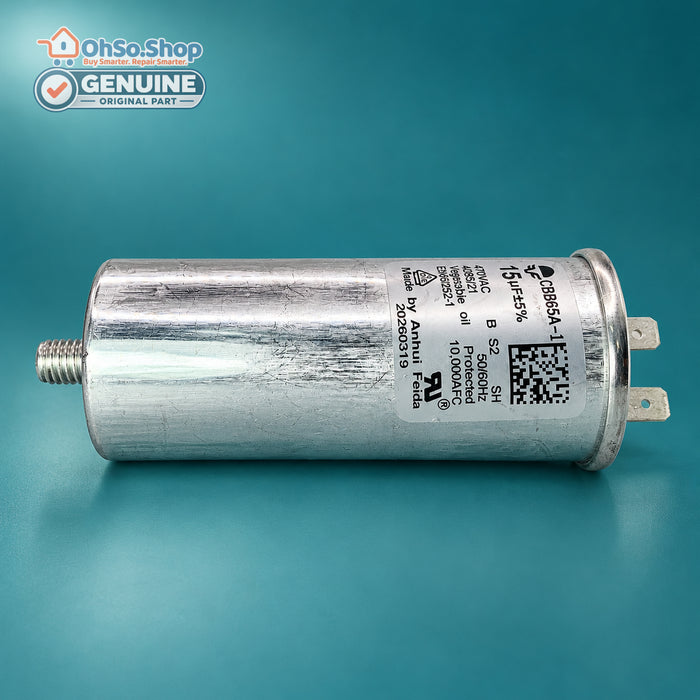

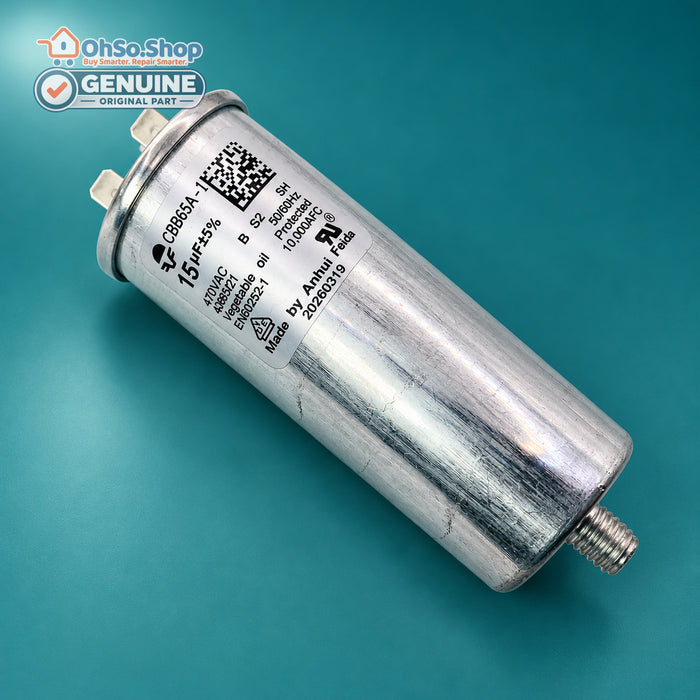

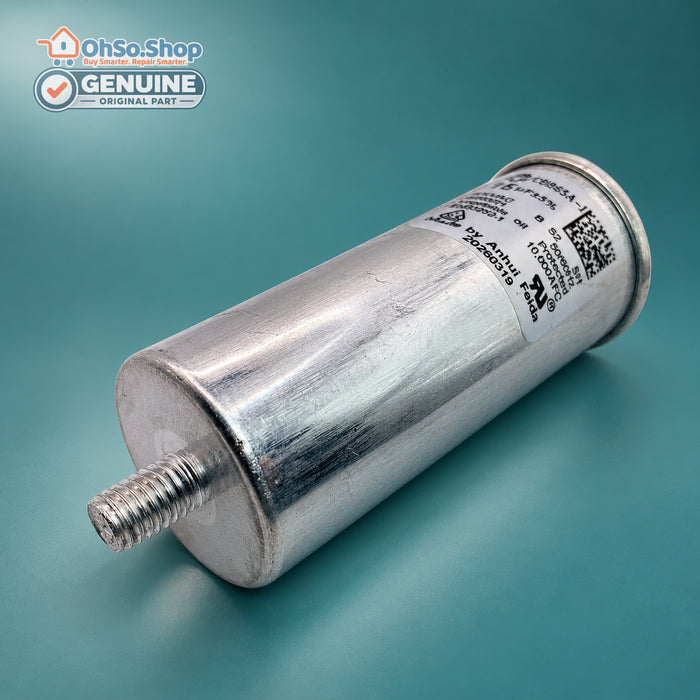

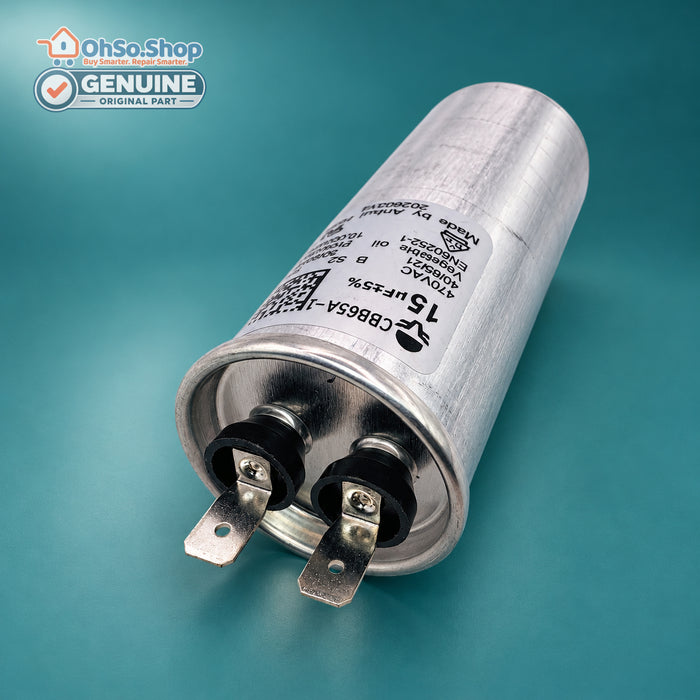

If your heat pump tumble dryer runs but leaves the clothes damp, or the compressor hums and cuts out, a weak or failed compressor capacitor is a common cause. This genuine Vestel 15µF CBB65A run capacitor, part number 32041424, is the original part fitted to the compressor circuit of many Vestel-made heat pump dryers sold as Logik, Bush, Sharp, Smeg and other brands. Fitting a new one helps the compressor start and run reliably again, restoring normal drying times without replacing the whole dryer.
Product Details
- Product Type: Heat Pump Tumble Dryer Compressor Run Capacitor
- Main Part Number / MPN: 32041424
- Alternative / Manufacturer References: C32041424; Vestel description: Capacitor (Ortak Kod) 15uF B Sinifi M8
- Part Category: Tumble Dryer Capacitors
- Appliance Types: Heat pump tumble dryer
- Brand Compatibility: Logik, Bush, Sharp, Smeg, Lamona, Montpellier and other Vestel-made heat pump dryers (selected models)
- Part Type: Genuine Original Part
- Capacitance: 15µF
- Capacitor Type: CBB65A motor run capacitor, Class B
- Mounting: M8 threaded stud
- Pack Includes: 1 x capacitor
What This Part Does
A heat pump dryer uses a small compressor, much like a fridge, to heat and dry the air inside the drum. The 15µF run capacitor gives the compressor motor the extra phase it needs to start and to run efficiently. As a capacitor ages it can lose capacitance, swell or leak, and the compressor may then struggle to start, overheat and cut out on its thermal protector, or not run at all. The drum keeps turning, but the dryer no longer dries properly.
Common Fault Symptoms
- The dryer runs for a long time but the clothes are still damp at the end.
- The compressor hums, clicks or tries to start and then cuts out.
- Drying times have become much longer than they used to be.
- The old capacitor is swollen, cracked or leaking, or measures well below 15µF on a capacitance meter.
Known Compatible Brands & Models
View compatibility information
This capacitor is listed for the following heat pump tumble dryer models. Many of these dryers also contain a separate, smaller capacitor for the drum motor, so check that the capacitor you are replacing is marked 15µF. The model number is usually on a label around the door opening or on the back of the dryer.
Compatible Models
- Akai: ASC 8024 PV, ASC 8025 GV, ASC8034V, ASC9036V
- Altimo: AHPD912W
- Amica: AD3C102LTG, AD3S72LEB, AD3S72LHB, AD3S72LTG, ADS71LD, ADS71LH, AWD82LCWM, SUPS 711 W, WTP 477 030, WTP 477 031, WTP 488 030, WTP 488 031
- Aspes: ASB308BC
- Atlantic: ATLWP80W10A
- AVG: 113CF4T, TDB
- Berklays: BDRY8P1TW
- Brandt: BDM9HW
- Bush: BCGBTD8HP, TDT110HP, TDT18HP, TDT19HP, TDTE18HPB
- Ceem: TH 720
- Concept: SP6308
- Confortec: DR816HP, DR88HP
- Continental: CESL10PCW1, CESL9PCWP1
- Continental Edison: CESL10PCW1, CESL7PCW3, CESL7PCWV1, CESL9PCWP, CESL9PCWP1
- Corbero: CSBCV8020T, CSBCV8021
- Cylinda: TVP 4272, TVP 4282, TVP4072, TVP4072XE, TVP41172, TVP4372, TVP4372XE, TVP4382, TVP4382XE, TVP4572, TVP4582, TVP915G29C
- Daewoo: T7HT1W0RS, T7HT2W0CH, T7HT2W0DE, T8HT1W0RS, T8HT1W0RU, T8HT1W1BG, T8HT1W1MD, T8HT1W2ES, T8HT1WBIT, T8HT2W0CH, T8HT2W0DE, T8HT2W0FR, T9HT2TW9RU, T9HT2WEFR
- Denner Edition: WP7000 FRANKFURT, WP9000 KÖLN
- Dikom: DKDR8
- ECG: ETF 1270 DA, ETF 1271 DA, ETF 80 HEAT BLACKLINE, ETF 90 HEAT BLACKLINE
- Electra: TDC7100W, THP7112W, THP8101W
- Electriq: EIQTDHPFS12, EIQTDHPFS12B
- Electro Line: DEVF28H, DEVT18HW
- Elektroland: WTR207 MISTRAL
- Essential: ESLHP8-3B
- Essentiel B: ESLHP8-3B
- ETA: ETA355690000C, ETA356390000C
- Exquisit: TWP802-6
- Fermatik: TMTD8HF4G
- Finlux: FT-F12H81W0EN, FXDR8HPWF2A2, TDF-7PF2SSL, TDF-8PF2SSG, TDF-8PF2SSG-BK, TDF-8PF2SSG-DS, TDF-8TP2, TDF-8TP3, TDF-9AD2, TL-WP-90-A++.1
- Fram: FHPD-V8T2A, FHPD-V8T2BKA, FHPD-V9T2A
- Geratek: DUISBURG TWP7000, STUTTGART TWP8110
- Gram: DD 58350-52, DD 58530-50, DDH 61093, TDS 5853-90, TLS 7853-90/1, TLS 7853-92, TLS 7853-92 BI, TTVP 8
- Heinner: HHPD-V10T2KA, HHPD-V702A, HHPD-V7T1CHA, HHPD-V804A, HHPD-V804A++, HHPD-V804SA, HHPD-V804SA++, HHPD-V8T1CHA, HHPD-V8T1CHSA, HHPD-V8T2KA, HHPD-V904A, HHPD-V9T1CHA, HHPD-V9T2KA
- Helkama: HKR800LP
- Highone: 973156 DHP 7 A, 976385 DHP 7 A
- Hyundai: DHN-G8F4, DHN-G9F4T, HTD22-09HP/W, HYSEBC8SHBE
- Icecool: ICS8BC
- Ignis: IGT8HPDA2, IGT9HPDA2
- Jeken: 48SPPSJ
- Kernau: KFD 7502, KFD 7502.1, KFD 8503, KFD 8503.1, KFD 9603
- Koenic: KTD 8317 A2
- Lamona: FLM8801, FLM8802, FLM8803
- LG: RH80T2AP6RM
- Listo: SLHP7-L4B
- Logik: LHP10W23, LHP8W18, LHP8W22, LHP8W22E, LHP8W23, LHP9W23
- Lorenz: SLR TB921
- Matsui: MHP8W19E
- Medion: MD 37412, MD 37625
- Meireles: MS801W
- Miostar: VE WP812-21, VE WP913-21
- Montpellier: MHP10SDW
- Morris: DO9PC5GDI, MPD-1076, MPD-9175
- MPM: MPM-90-SH-41
- Nabo: TW 7100, TW 7200, TW 8000, TW 8200
- Navon: TD 7 AA, TD 8 AA
- New Pol: NW84HP, NWS0HPD, NWS8HPE, NWT84HP, NWT84HP.1
- New World: NWCGTD8HP, NWCGTD9HP
- NGM: CLELIA, CLELIA 2, DR800, TANIA, TANIA 2
- Nikkei: NVDRH71
- Nordmende: ND ASC 8025 GV, TDHP80WH, TDHP81WH, TDHPC10WH, TDHPE80WH
- Ocean: OCD 1002 WL FP A, OCD 1002 WL Z A
- Oceanic: OCD 1202 WL Z A
- OK: OTD 73119 A2, OTD 7312 A2, OTD 7312 CH A2, OTD 7322 A2, OTD 7322 CH A2, OTD 7329 A2
- Orima: ORBC 92, ORBC82, ORBC83
- Oxford: OXSL8HP
- Pando: 010866PWS-8161
- Philco: PDC 72 CHIVA
- Princess: BELLA, MUSA, PEARL
- Qilive: 147224-Q.6965, 150106-Q.6965
- Raymond: ASRPC9, ASRVPC8
- Robin: DRS-1031, DRS-830, DRS-831
- Rommer: SECA-ECO 8 BOMBA
- Romo: RHD1081A, RHD2071S, RHD2073A
- Russell Hobbs: RH9HPTD111B, RH9HPTD111W
- Salora: DHP8105
- SB: SB4574
- Schaub Lorenz: SLR TB921, VSDR8D4T, VSDR9D4T
- Sensis: TDHF018A2W
- Sharp: KD-GHB7S7GW2-BX, KD-GHB7S7GW2-CH, KD-GHB7S7GW2-DE, KD-GHB7S7GW2-EE, KD-GHB7S7GW2-FR, KD-GHB7S7PW2-DE, KD-GHB8S7GW2-BX, KD-GHB8S7GW2-DE, KD-GHB8S7GW2-EE, KD-GHB8S7GW2-FR, KD-GHB9S7EW2-FR, KD-GHB9S7GW2-EE, KD-GHB9S7GW2-FR, KD-GHB9S7GW2-IT, KD-HB8GW2-BE, KD-HH8GW-BE, KD-HH8GW1-BE, KD-HHB0S7PW21-FR, KD-HHB7S7GW2-IT, KD-HHB7S7PW2-DE, KD-HHB8S7GW2-IT, KD-HHB8S7PW2-DE, KD-HHB8S7PW21-FR, KD-HHB9S7GW2-IT, KD-HHB9S7PW2-CH, KD-HHH0S7EW21-FR, KD-HHH0S7GW2-FR, KD-HHH0S7GW21-FR, KD-HHH7S7GW2-EE, KD-HHH7S7GW2-FR, KD-HHH7S7GW2-PL, KD-HHH7S7GW21-EE, KD-HHH8S7GW2-BX, KD-HHH8S7GW2-DE, KD-HHH8S7GW2-EE, KD-HHH8S7GW2-EN, KD-HHH8S7GW2-FR, KD-HHH8S7GW2-PL, KD-HHH8S7GW21-EE, KD-HHH8S7GW21-EN, KD-HHH8S7GW21-FR, KD-HHH9S7EW2-FR, KD-HHH9S7GW2-EE, KD-HHH9S7GW2-EN, KD-M7PW2-DE, KD-NA8S6W21-BE, KD-NHA0S6GW1D-EN, KD-NHA7S7GW21-EE, KD-NHA7S7PW2-DE, KD-NHA7S7PW21-DE, KD-NHA8S6GW1D-DE, KD-NHA8S6GW21-BX, KD-NHA8S6GW21-CB, KD-NHA8S6GW21-EE, KD-NHA8S6GW21-EN, KD-NHA8S7GW21-EE, KD-NHA8S7PW21-DE, KD-NHA9S6GW2-EN, KD-NHA9S7GW2-EE, KD-NHB0S7GW21-IT, KD-NHB2S7GWE-FR, KD-NHB8S7GW21-EE, KD-NHB8S7GW21-IT, KD-NHB9S7GW2-EE, KD-NHB9S7GW2-IT, KD-NHH0S7GW21-EE, KD-NHH0S7GW21-EN, KD-NHH2S7EW2-FR, KD-NHH2S7GW2-FR, KD-NHH7S7GW2-DE, KD-NHH7S7GW2-EE, KD-NHH7S7GW2-PL, KD-NHH7S9GA21-DE, KD-NHH7S9GB21-DE, KD-NHH8S7GW2-EE, KD-NHH8S7GW2-EN
- Signature: SLPAC92S, SSLPAC9
- SilverCrest: SWT 8 A1
- Smeg: AST1T08EUD, AST82EU, AST82EU1, DE71EU, DT171IT, DT172UK, DT181IT, DT182EX, DT182EX1, DT182IT, DT1T08E, DT282PIT, DT292C, DT292PIT, HM2700
- Snaige: STD-7HPG
- SPC: WT721, WT821
- Starlight: DPV-815A, DPV-915A
- Sunfeel: SC820DP
- Svan: SSB800A2DB
- Techlife: TLTD8KD
- Technical: TSLPACT1
- Technolux: TL-WP-90-A, TL-WP-90-A++.1
- Tecno: TEC8PCA, TEC8PCA+2
- Tegran: TGVSBC824
- Teka: SHL 40942 WH, SHT 70820 WH
- Telefunken: T-12-300-W, T-WP-7-1-W, T-WP-9-3-W, T-WP8-10-B, TF-WP-0017F1B, TF-WP-097T0B, TFWP94F4, TKDR8HPGF2A2, TKDR9HPGF2A2
- Tucson: TSL1018PAC, TSL908PAC
- Valberg: 976048 DHP 8 A
- Vestel: DO8PC5GDI, H114VT3MB, H114VT3W, T-W047U, T-W047X, TDH 9GP4, TH 720, TVH0017C2, TVH0017C2-1, TVH097T22, VG-THT277GW2
- Vestfrost: HOF VTT 8, VHTD 108, VHTD 208, VHTD107, VT-FD41HN70EU, VT-FW41HN70EU
- Vortex: VUR8PWH1V
- Vox: THP810T1A
- Waltham: WTD7PACF1
- White Knight: WK-AT8HPW
- Winia: WVR-08HF4WW56, WVR-08HT1WW, WVR-08HT1WWN
- XD: XDDR8HPA2, XDDR8HPAA
- Zoppas: VZD-8GF2A, VZD-9GF4, VZD8HF2, VZD8HF4
Compatible Brands
- Akai
- Altimo
- Amica
- Aspes
- Atlantic
- AVG
- Berklays
- Brandt
- Bush
- Ceem
- Concept
- Confortec
- Continental
- Continental Edison
- Corbero
- Cylinda
- Daewoo
- Denner Edition
- Dikom
- ECG
- Electra
- Electriq
- Electro Line
- Elektroland
- Essential
- Essentiel B
- ETA
- Exquisit
- Fermatik
- Finlux
- Fram
- Geratek
- Gram
- Heinner
- Helkama
- Highone
- Hyundai
- Icecool
- Ignis
- Jeken
- Kernau
- Koenic
- Lamona
- LG
- Listo
- Logik
- Lorenz
- Matsui
- Medion
- Meireles
- Miostar
- Montpellier
- Morris
- MPM
- Nabo
- Navon
- New Pol
- New World
- NGM
- Nikkei
- Nordmende
- Ocean
- Oceanic
- OK
- Orima
- Oxford
- Pando
- Philco
- Princess
- Qilive
- Raymond
- Robin
- Rommer
- Romo
- Russell Hobbs
- Salora
- SB
- Schaub Lorenz
- Sensis
- Sharp
- Signature
- SilverCrest
- Smeg
- Snaige
- SPC
- Starlight
- Sunfeel
- Svan
- Techlife
- Technical
- Technolux
- Tecno
- Tegran
- Teka
- Telefunken
- Tucson
- Valberg
- Vestel
- Vestfrost
- Vortex
- Vox
- Waltham
- White Knight
- Winia
- XD
- Zoppas
Please check your appliance model number and compare the original part before ordering.
Repair Difficulty
Moderate: the capacitor is mounted near the compressor and is reached by removing a rear or lower panel. It is held by its M8 stud and nut and connected with push-on terminals. Capacitors can hold a charge after the dryer is unplugged, so this job suits someone confident working safely inside an appliance.
Typical Tools Required
- Screwdriver set
- 13 mm spanner or socket for the M8 mounting nut
- Insulated screwdriver or resistor to discharge the old capacitor
- Phone camera to photograph the wiring before disconnecting
Description
Before ordering, compare the markings on your existing capacitor: it should read 15µF and may carry the Vestel number 32041424. Logik LHP and Bush TDT heat pump dryers use more than one capacitor, so matching the µF value is the quickest way to be sure you are replacing the right one.
If your dryer model is not listed above, send us the full model number and product code from the rating label before ordering and we will check it for you where possible.
Electrical or gas appliance parts should only be fitted by a suitably competent person. Always isolate the appliance before inspection or repair and ensure correct safety checks are carried out after fitting.
Brand names, model numbers and part numbers are used for identification and compatibility guidance only. This part should be checked against the original appliance model number and existing part before ordering.
Replacing a faulty appliance part can help extend the life of your appliance and reduce unnecessary waste.
