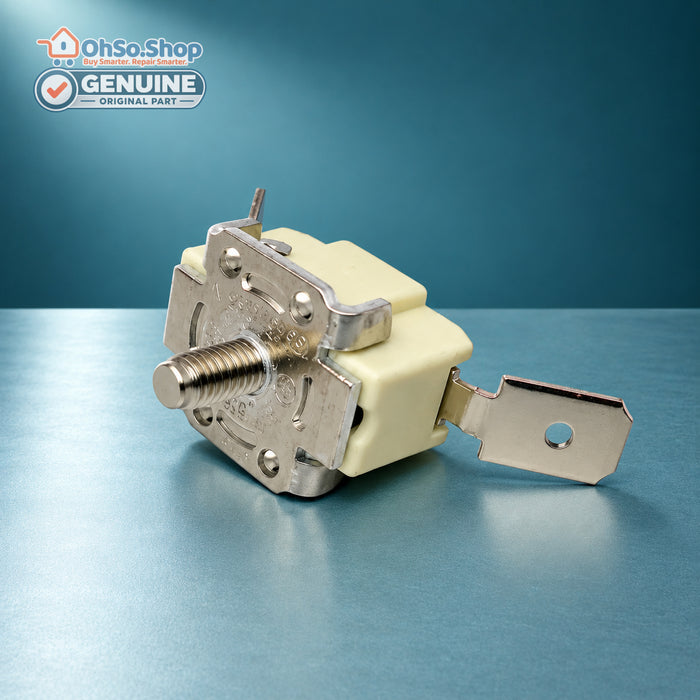

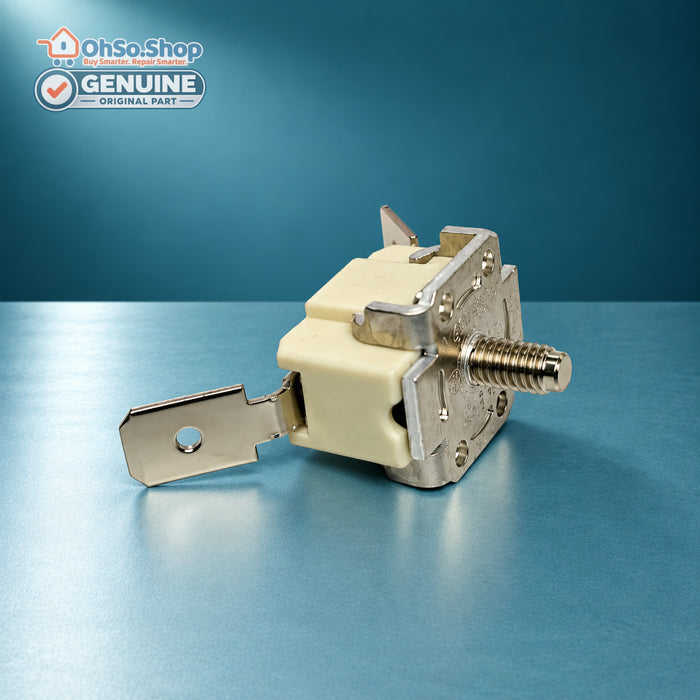

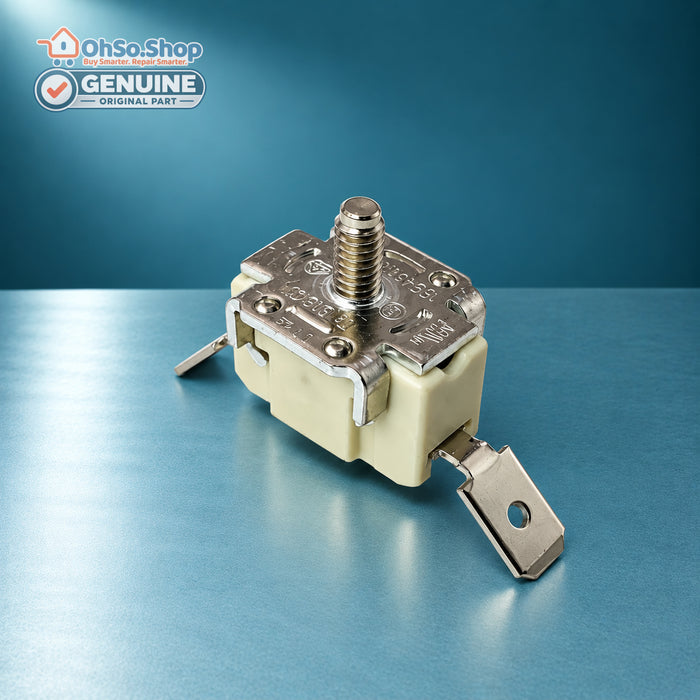

If your DeLonghi bean-to-cup machine has stopped making steam or will not heat, the thermal cut-out fuse on the boiler may have blown. This is the genuine DeLonghi 318°C thermal fuse, part number 5232105000, used across the Magnifica, Perfecta and PrimaDonna ranges and Nespresso Lattissima machines.
Product Details
- Part Number: 5232105000
- Product Type: Coffee machine thermal cut-out fuse (TCO)
- Cut-out Temperature: 318°C
- Reset Type: One-shot (non-resettable)
- Part Category: Coffee machine fuses and thermostats
- Appliance Types: Bean-to-cup and automatic espresso machines
- Brand Compatibility: DeLonghi, Nespresso Lattissima, and DeLonghi-platform Caple and Elba machines
- Part Type: Genuine Original Part
- Pack Includes: 1 x thermal fuse
What This Part Does
The thermal fuse protects the boiler or steam heater from overheating. If the temperature passes 318°C it blows and permanently cuts power to the heater. It cannot reset, so once it has blown the machine will not produce steam or heat until the fuse is replaced.
Common Fault Symptoms
- The machine no longer makes steam
- The machine will not heat up
- The fuse tests open-circuit on a meter
- The machine stopped after overheating or running dry
Known Compatible Brands & Models
View compatibility information
This fuse is fitted across many DeLonghi bean-to-cup machines and Nespresso Lattissima models. The list below is a sample; please check your model number on the label under the drip tray.
Compatible Models
- DeLonghi: ESAM04.350.S, ESAM3250, ESAM3300, ESAM3400, ESAM3400.R, ESAM3400.S, ESAM3500, ESAM3500.S, ESAM3550.B, ESAM3600, ESAM4200.S, ESAM4300, ESAM4400, ESAM4500, ESAM4500.B, ESAM5500, ESAM5500.B, ESAM5500.L, ESAM5500.M, ESAM5500.P, ESAM5500.R, ESAM5500.S, ESAM5500.T, ESAM5500.W, ESAM5550.B, ESAM5550.R, ESAM5556.B, ESAM5600, ESAM5600.S, ESAM5700.S, ESAM6600, ESAM6620, ESAM6650.S, ESAM6700, ESAM6750, ESAM6850.M, ESAM6900.M, EAM3250, EAM3300, EAM3300.S, EAM3400, EAM3400.S, EAM3500, EAM3500.N, EAM3500.S, EAM4200.S, EAM4300, EAM4400, EAM4500, EABI6600, ECA13300, ECA13400, ECA13500.N, ECA13500.S
- Nespresso Lattissima: EN660, EN660.R, EN670.B, EN680.M, EN690.T, EN720.M, EN720.MB
Compatible Brands
- DeLonghi, Nespresso Lattissima, Caple, Elba
Please check your appliance model number and compare the original part before ordering.
Repair Difficulty

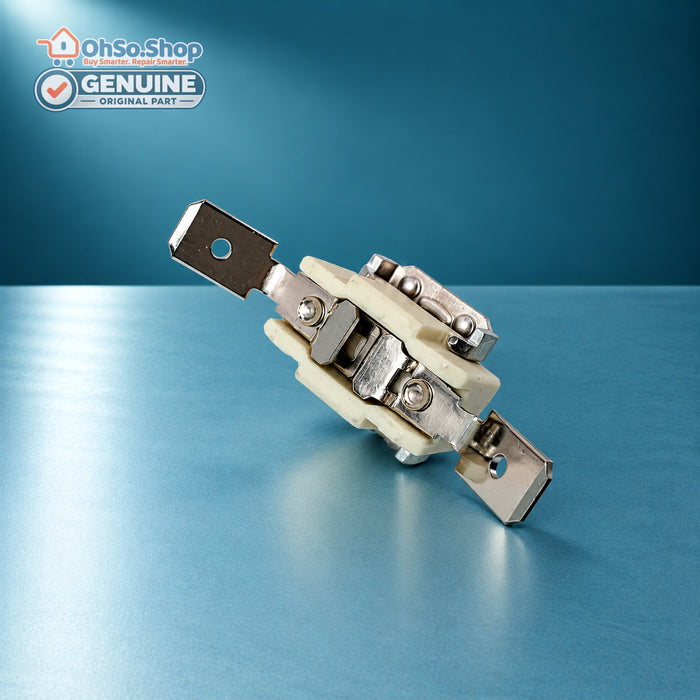

Moderate to hard. Unplug the machine and let it cool fully. Remove the side panel to reach the boiler. The fuse is clamped to the heater with a bracket and has two connectors. Note how it is fitted before removing it, and make sure the new fuse sits flat against the heater.
Typical Tools Required
- Screwdrivers (some models need a security bit)
- Multimeter (optional) to test the old fuse
- Phone camera to record the wiring
Description
Part number 5232105000. Rated to cut out at 318°C.
A blown thermal fuse usually means the heater overheated, often from scale build-up or running dry. Descale the machine and check the heater before fitting, or the new fuse may blow too. If you are unsure about your model, send us the model number and we will check it for you.
Electrical or gas appliance parts should only be fitted by a suitably competent person. Always isolate the appliance before inspection or repair and ensure correct safety checks are carried out after fitting.
Brand names, model numbers and part numbers are used for identification and compatibility guidance only. This part should be checked against the original appliance model number and existing part before ordering.
Replacing a faulty appliance part can help extend the life of your appliance and reduce unnecessary waste.
