Tumble Dryer Thermostat Kit One Shot & Cycling TOC for Hotpoint Indesit

Tumble Dryer Thermostat Kit One Shot & Cycling TOC for Hotpoint Indesit

If your tumble dryer turns but blows cold air, or heats for a while and then stops, one of the heater cut-outs has probably tripped or failed. This kit replaces both: a one-shot thermal cut-out (white base) and a cycling TOC thermostat (black), for selected Hotpoint and Indesit condenser tumble dryers.

Product Details

• Product Type: Tumble dryer thermostat cut-out kit (TOC)
• Equivalent To: C00306861

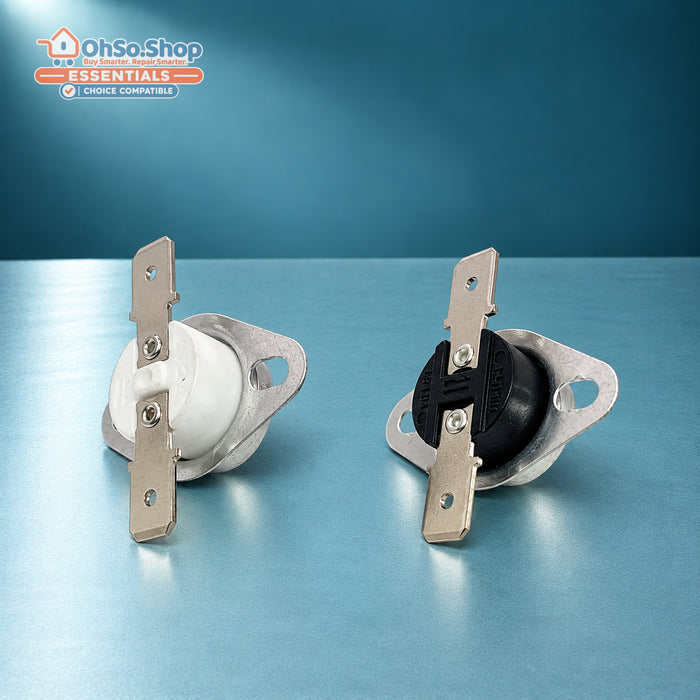

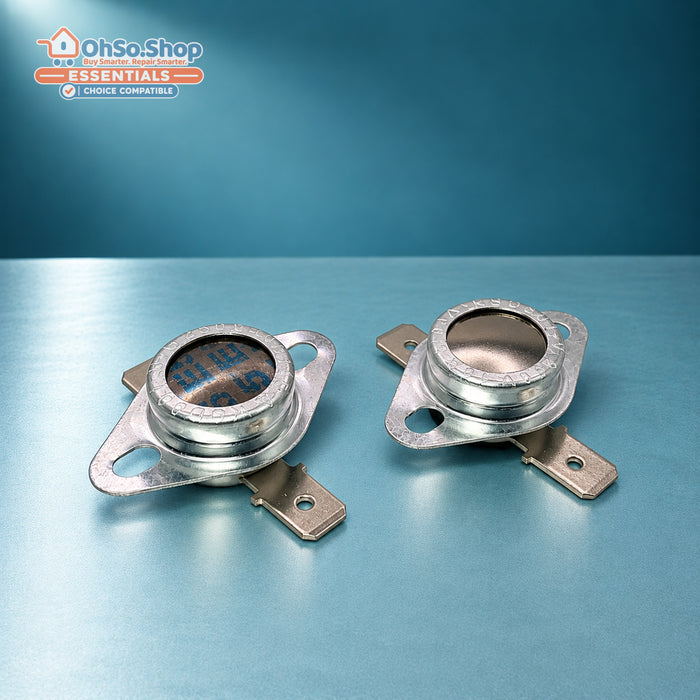

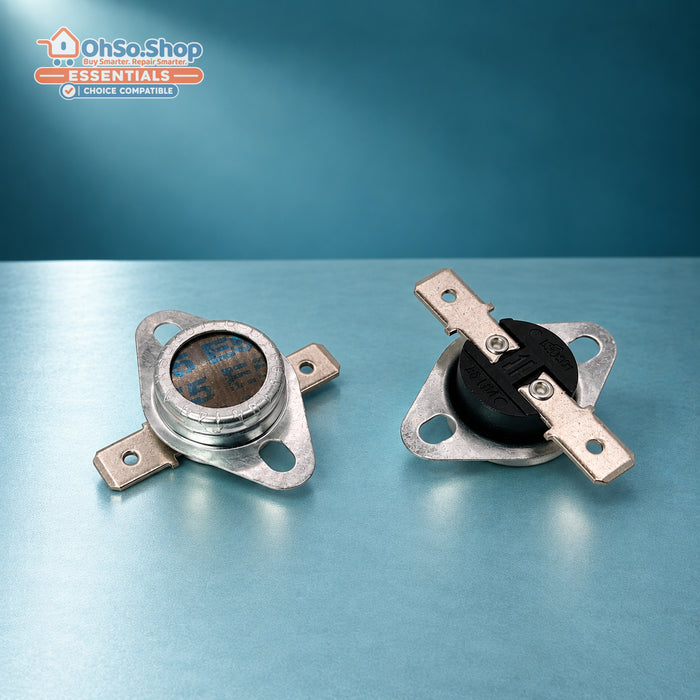

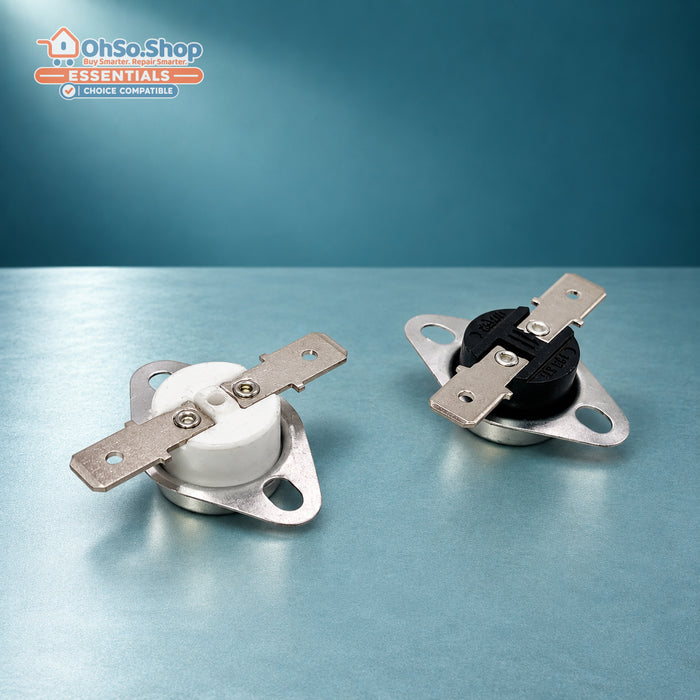

• Kit Contents: 1 x one-shot thermal cut-out (white base), 1 x cycling TOC thermostat (black)
• Heater Type: For the 2050W heater element, compatible with C00505409
• Part Category: Tumble dryer thermostats
• Appliance Types: Condenser tumble dryers
• Brand Compatibility: For selected Hotpoint and Indesit dryers (also listed for Whirlpool and Swan models)
• Part Type: Compatible Replacement Part
• Pack Includes: 2 x thermostat cut-outs

What This Part Does

The two cut-outs protect the heater. The cycling thermostat switches the heater off when the air gets too hot and resets itself as it cools. The one-shot cut-out is a last line of protection: once it trips it stays open and must be replaced. When either fails or trips, the drum keeps turning but the dryer blows cold air. Replace both together.

Common Fault Symptoms

• The drum turns but the dryer blows cold air
• The dryer heats briefly and then goes cold
• Clothes are still damp after a full programme
• The dryer overheated, often after a blocked filter or condenser
• A cut-out tests open-circuit on a meter

Known Compatible Brands & Models

Repair Difficulty

Moderate. Unplug the dryer and remove the rear panel to reach the heater. Each cut-out is held by a clip or screws and has two spade connectors. Fit the one-shot (white base) and cycling (black) cut-outs in the same positions as the originals.

Typical Tools Required

• Screwdrivers to remove the rear panel
• Multimeter (optional) to test the old cut-outs
• Phone camera to record which cut-out goes where

Description

This kit is equivalent to C00306861. It suits dryers with the 2050W heater element, compatible with C00505409. The one-shot cut-out has the white base; the cycling thermostat is black.

A tripped one-shot cut-out almost always means the dryer overheated. Clean the fluff filter and condenser before fitting, or the new cut-outs may trip too. Check the model number inside the door and compare your old cut-outs with the photos. If you are unsure, send us your model number and we will check it for you.
