Genuine Midea Washing Machine Door Interlock for Logik Kenwood 17438100000456
Genuine Midea Washing Machine Door Interlock for Logik Kenwood 17438100000456
Get your washing machine starting again with this genuine Midea door interlock, part number 17438100000456. The interlock locks the door once a programme begins and tells the control board the door is safely shut, so the wash can start and the door stays closed until the drum is safe to open. It is listed for Midea-built washing machines and washer dryers sold under the Logik, Kenwood and Caple names, and is usually replaced when the machine will not start, shows a door error or the door will not unlock.
Product Details
- Product Type: Washing machine door interlock (ZV-446 type, 3 terminals)
- Main Part Number / MPN: 17438100000456
- Alternative / Manufacturer References: 302430860017, 421309243871
- Part Category: Door interlocks and locks
- Appliance Types: Washing machines and washer dryers
- Brand Compatibility: For selected Logik, Kenwood and Caple models (Midea-built)
- Part Type: Genuine Original Part
- Pack Includes: 1 x genuine door interlock
What This Part Does
The door interlock is a small electrical switch and locking pin fitted behind the door catch on the front of the machine. When the door closes, the catch enters the interlock; when a programme starts, the interlock locks it and signals the control board that the door is secure. If the switch fails the machine may refuse to start, stop mid-cycle with a door error, or keep the door locked after the programme has finished.
Common Fault Symptoms
- Machine will not start although the door is closed
- Door error code or door light flashing
- Door stays locked after the programme ends
- Programme stops mid-cycle
- Door does not lock at the start of a wash
Known Compatible Brands & Models
View compatibility information
This genuine interlock is listed by UK parts suppliers for the 28 models below. Midea builds machines for several brands, so if your model is not listed, send us the model number from the rating plate inside the door or on the back and we will check it.
Compatible Models
- Logik L1016WM18
- Logik L612WM23
- Logik L712WM23
- Logik L712WM26
- Logik L714WM23
- Logik L814WM23
- Logik L914WM18
- Logik L914WM23
- Logik L914WMB25
- Logik LIW714W15
- Logik LIW714W20
- Logik LIW814W15
- Logik LIW814W20
- Logik LIW814W26
- Kenwood KIW714W25
- Kenwood KIW714W25A
- Kenwood KIW814W23
- Kenwood KIW814W25
- Kenwood KIW814W25A
- Kenwood KIW914W23
- Kenwood KIW914W25
- Caple WDI3300
- Caple WDI3301
- Caple WMI3000
- Caple WMI3001
- Caple WMI3005
- Caple WMI3006
- Caple WMI3007
Compatible Brands
- Logik
- Kenwood
- Caple
Please check your appliance model number and compare the original part before ordering.
Repair Difficulty
Moderate: unplug the machine, fold back the front door seal and remove its retaining band, then undo the two interlock screws beside the door catch and reach the interlock from inside the opening. Move the wiring plug to the new interlock exactly as it was. Allow around 20 to 30 minutes.
Typical Tools Required
- Cross-head screwdriver
- Flat-blade screwdriver to release the seal band
- Phone camera to record the wiring
Description

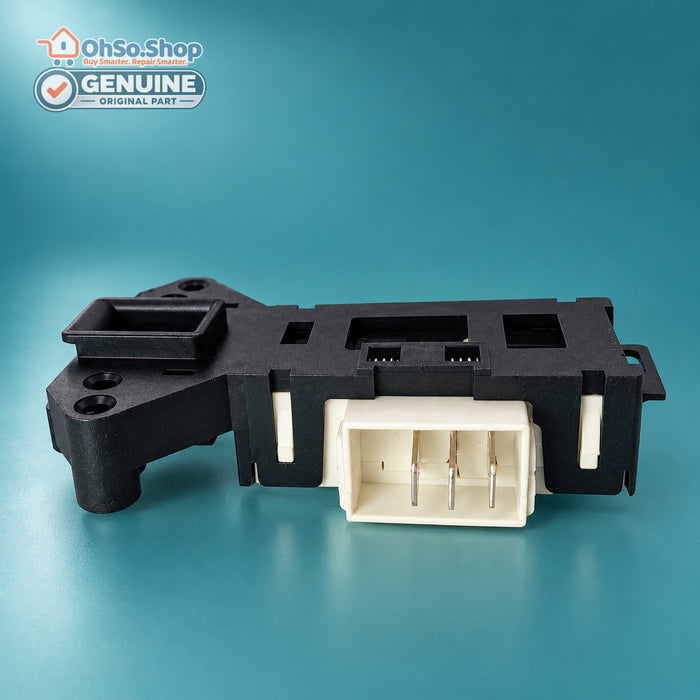

Before ordering, compare your old interlock: this one is a ZV-446 type with three terminals. Check the model number on your machine against the list.
This is a genuine Midea part, supplied new, pack of one.
Electrical or gas appliance parts should only be fitted by a suitably competent person. Always isolate the appliance before inspection or repair and ensure correct safety checks are carried out after fitting.
Brand names, model numbers and part numbers are used for identification and compatibility guidance only. This part should be checked against the original appliance model number and existing part before ordering.
Replacing a faulty appliance part can help extend the life of your appliance and reduce unnecessary waste.
Compatible Models
MPN Number
17438100000456
