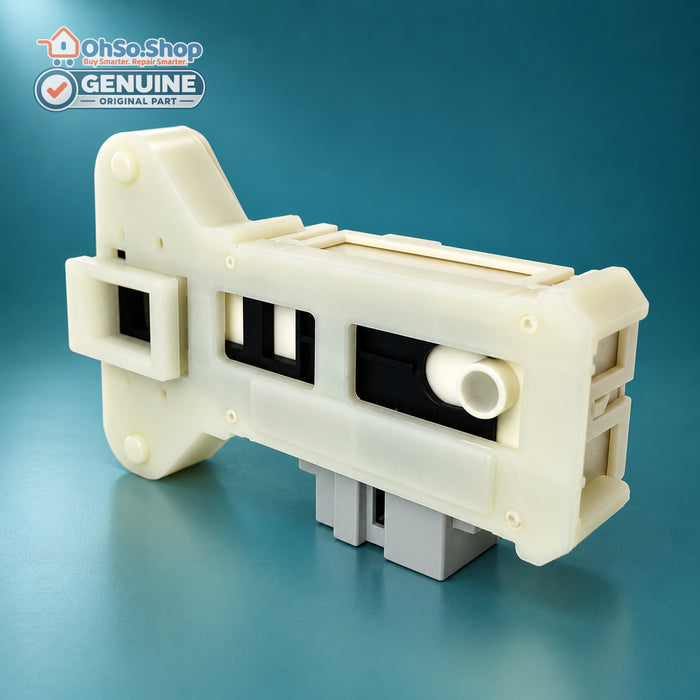

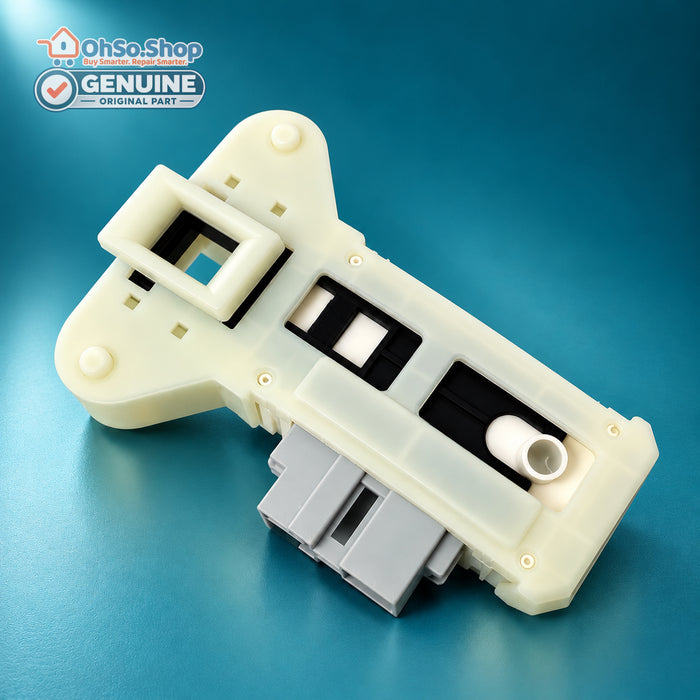

Genuine Hotpoint Indesit Washing Machine Door Interlock C00306612
If your washing machine will not start, stops part way through a cycle, or the door will not lock or release, a faulty door interlock is a common cause. This genuine C00306612 interlock is the switch that locks the door during the wash and tells the machine it is safe to fill and spin. It is used in a wide range of Hotpoint and Indesit washing machines and washer dryers, plus selected Whirlpool, Ariston and Creda models.
Compatibility Notice: Please check your full appliance model number and original part number before ordering. If unsure, contact us with your model details and we will be happy to help.
Product Details
- Product Type: Washing machine door interlock (door lock switch)
- Main Part Number / MPN: C00306612
- Alternative / Manufacturer References: 482000023482, C00283993, C00297327, C00298778, C00303138
- Part Category: Door interlocks and locks
- Appliance Types: Washing machines and washer dryers
- Brand Compatibility: Selected Hotpoint, Indesit, Whirlpool, Ariston, Hotpoint-Ariston and Creda models (see the full list below)
- Part Type: Genuine Original Part

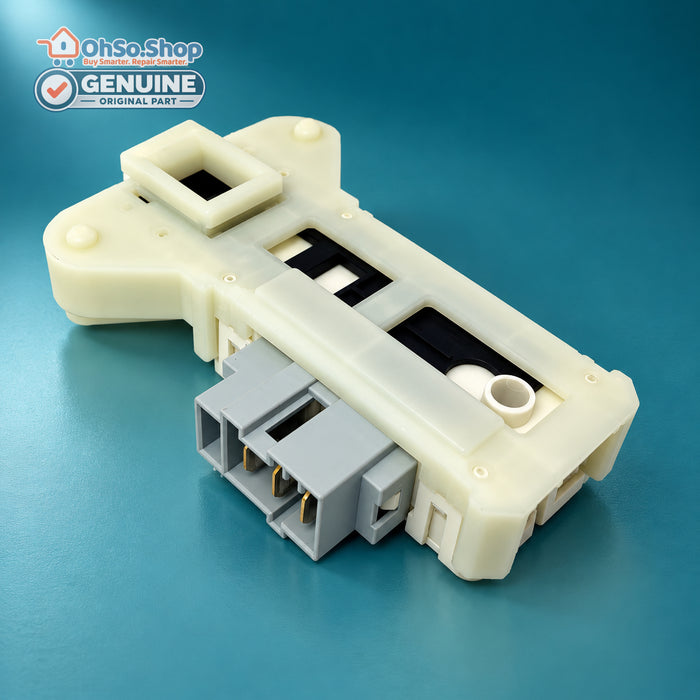

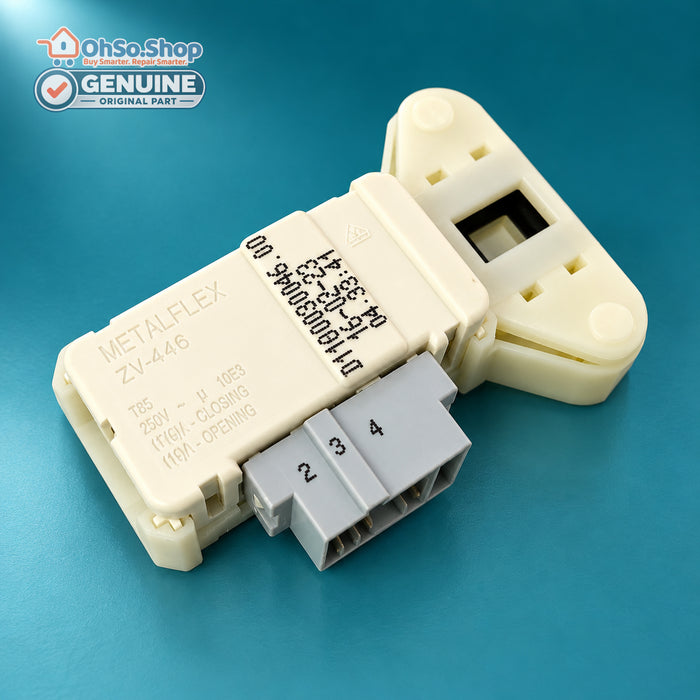

- Connections: 3 terminals
- Pack Includes: 1 x door interlock (fixing screws not included - reuse your existing screws)
What This Part Does
When you start a programme, the interlock locks the door and closes a switch that tells the control board the door is shut and secure. Only then will the machine fill, heat and spin. At the end of the cycle it releases the door once it is safe to open. If the interlock fails, the machine may refuse to start, stop mid-cycle with a door-lock error, or keep the door locked.
Common Fault Symptoms
- The machine will not start and the door lock light flashes
- The door will not lock, or clicks but does not hold
- The machine stops part way through a cycle
- The door stays locked after the cycle has finished
- A door-lock error such as F6 or F17 is shown (codes vary by model)
Known Compatible Brands & Models
View compatibility information
This interlock is listed for 811 washing machine and washer dryer models across 15 brands, including 195 UK models. Find your brand below and match your full model number, which is printed on the label inside the door rim or on the back of the machine. These brands also use other interlocks in other models, so please do not order on brand alone. If your model is not listed, send us your model number and we will check it for you.
Compatible Models
- Hotpoint: BHWMED149UK, BHWMXL145UK, BWD12, BWD129, BWM12, BWM129, FDEU8640PUK, FDF9640GUK, FDF9640KUK, FDF9640PUK, FDL8640PUK, FDL9640GUK, FDL9640KUK, FDL9640PUK, FML842GUK, FML842KUK, FML942GUK, FML942KUK, FML942PUK, HE7L252PUK, HE7L492PUK, HE7L692PUK, HE8L493GUK, HE8L493PUK, HE9L493PUK, HF8B593GUK, HF8B593PUK, HFEL521PUK, HSTB621PUK, HSTB621PUKM, HTB721PUK, HULT742GUK.C, HULT742KUK.C, HULT742PUK.C, HULT742PUKM, HULT763PUK.C, HULT822PUK, HULT843GUK, HULT843PUK, HULT843PUKM, HULT923PUK, HULT943GUK, HULT943KUK, HULT943PUK, HULT963PUK, HV7L1451PUK, HV7L1451PUKM, HV7L145PUKE, HV8B593GUK, HV8D393P, HV8D393PUK, HV8F292PUK, HVL211UK, HVL241UK, HY6F1551PUKT, HY6F3551PUKT, HY8F491PUK, SCR11P, SCR33N, SCR33S, SCR61P, SCR61S, SCR61YS, WD420P, WD645A, WD860G, WDAL8640GUK, WDAL8640PUK, WDAL9640GUK, WDD750PUK, WDD756PUK, WDD756PUK58, WDF740GUK58, WDF740GUK.C, WDF740PUK, WDF740PUK58, WDF740PUKA, WDF756PUK, WDF756PUK58, WDL520PUK.C, WDL520PUKC58, WDL5290PUK, WDL540PUK.C, WDL540PUKC58, WDL5490PUK, WDL754PUK, WDL756PUK, WDL756PUK58, WF101P, WF250G, WF250P, WF321P, WF325A/SC, WMAO743GUK, WMAO743KUK, WMAO743PUK, WMAO863GUK, WMAO863KUK, WMAO863PUK, WMAO963GUK, WMAO963PUK, WMAOD844GUK, WMAOD844KUK, WMAOD844PUK, WMAOD944GUK, WMAOD944PUK, WMBF822PUK, WMBF844GUK, WMBF844PUK, WMBF944GUK, WMBF944KUK, WMBF944PUK, WMBF963PUK, WMEF943PUK, WMEUF944PUK, WMFUG863GUK, WMFUG863PUK, WMFUG963GUK, WMFUG963PUK, WMJLD943PUK, WML940P(UK)R, WML940PUK.RE, WMSIF8437BCU, WMSIF8437BCUK, WMXTF822PUK, WMXTF842GUK, WMXTF842GUKR, WMXTF842KUK, WMXTF842KUKR, WMXTF842PUK, WMXTF922PUK, WMXTF942GUK, WMXTF942GUKR, WMXTF942KUKR, WMXTF942PUK, WMXTF942PUKR
- Indesit: AB104IT, AB104XTK, AB83TK, AB84XTK, AC106BFR, AC120LIT, AC80LIT, AD1000EX, AL109XEU, AL118DTK, AL129XAUS, AL129XTK, AL68XEX, AL68XPT, AL68XSPT, AL88EU, ALD160EU, ALDS100EX, ALDS120EX, ALS109XIT, ALS68XIT, ALS88XEU, AML119TK, AML129EU, AML89EU, AV10IT, AV40AG50-60, AV41AG50-60, AV41EX50-60, AV42EX50-60, AV51AG50-60, AV51EO, AV51EX50-60, AV52EX50-60, AV61AG, AV61AUS, AV62EU, AV6EU, AV82TK, AV82XTK, AV8IT, AVD130FR, AVD130XFR, AVL105AG, AVL105EX, AVL105TK, AVL105XTK, AVL108TK, AVL109EU, AVL109IT, AVL120FRTE, AVL129EU, AVL129EXTE, AVL145DE, AVL149R, AVL61EX115/60, AVL62EO, AVL62EX60HZ, AVL62KW, AVL64EU, AVL65EO, AVL65PT, AVL66PIT, AVL68IT, AVL6EIT, AVL82AG, AVL84EU, AVL85SEU, AVL85TK, AVL85XTK, AVL86PIT, AVL8EIT, AVL95AG, AVL95AUS, AVL9EIT, AVSL105EU, AVSL109ITV, AVSL129IT, AVSL66ITV, BWA101283XWFR, BWA71052WEU, BWA71052XWEU, BWA71083XWPL, BWA71283XWPL, BWA81083XWPL, BWA81283XWEU, BWA81283XWUK, BWA81483XSUK, BWA81483XWUK, BWA81683XKUK, BWA81683XWUK, BWA91683XWUK, BWD61252WFR, BWD71252WFR, BWD71252WUKR, BWD71253WEU, BWD71453KUK, BWD71453SFR, BWD71453SUK, BWD71453WUK, EWC61081WDE, EWC61252SFR, EWC61252WFR, EWC61252WFRM, EWC61281WDE, EWC71252SFR, EWC71252WFR, EWC71252WFRC, EWC71252WFRM, EWC71252WNA, EWC71452WFR, EWC71452WFRM, EWC81252WFRM, EWC81252WNA, EWC81482WFR, EWC81482WFRM, EWC81483WEU, EWC91083BSEU, EWC91083BSIT, EWC91083BSIT1, EWD61052WEU, EWD61052WEU/1, EWD61052WPL, EWD61052WTK, EWD61083WPL, EWD61283WPL, EWD61452WEU, EWD61452WFR, EWD61482WDE, EWD61483WDE, EWD71051WEU, EWD71052HK, EWD71052SLEUM, EWD71052WPL, EWD71083SLTK, EWD71083WEU, EWD71251WEU, EWD71252WUK, EWD71482BDE, EWD71483WDE, EWD71682BDE, EWD81252WITM, EWD81283WTK, EWD81482SUK, EWD81482WUK, EWD81482WUKM, EWD91282WFR, EWD91283WEU, EWD91482WFR, EWDC6105WIT, EWDC6145SFR, EWDC6145WDE, EWDC6145WDE58LT, EWDC6145WFR, EWDC6145WFR58LT, EWDC7125CIS, EWDC7145SFR, EWDC7145SFR58LT, EWDC7168WFR, EWDD7125WIT, EWDD7145WDE, EWDD7145WDE58LT, EWDD7145WFR, EWDE71280WEU, EWDE71280WEU58LT, EWDE7145WUK, EWDE71680WDE, EWDE71680WDE58LT, EWDE71680WTW, EWDE751680WTW, EWE61083WPL, EWE61252SNA, EWE61252WEU, EWE61283WPL, EWE61652WDE, EWE71083STK, EWE71083WEU, EWE71083WTK, EWE71482WDE, EWE71483WDE, EWE71483WEU, EWE71483WTH, EWE71682WDE, EWE81283SLTK, EWE81283SLTKM, EWE81283WEU, EWE81283WEU1, EWE81484BEU, EWE81484BTH, EWE81484WDE, EWE81683WDE, EWE81683WEU, EWE91083WTK, EWE91283SLTK, EWE91482WUK, EWME147UK, IWC71083CECOTK, IWC81082CECOIT, IWC81082CECOITM, IWC81481ECOUK, IWC81482ECOUK, IWC91082BSCECOIT, IWC91482ECOUK, IWD81282CFR, IWD81283ECOEU, IWD91282CFR, IWDC71680ECOEU, IWDE7168UK, IWE71082SCECOEU, IWE71483CECODE, IWE81281ECOUK, IWE81281KECOUK, IWE81481ECOUK, IWE81481SECOUK, IWE81681ECOUK, IWE81683BCECOEU, IWE91281ECOUK, IWE91481ECOUK, IWME147UK., IWSB6085CIS, IWSB6105CIS, IWSC61081CECOIT, IWSD71051CECOEU, IWSD71051CIS, IWSD7105BCIS, IWSE61281CECOEU, IWSE71051CIS, IWSE71251CIS, LWD81483WUK, LWE91483WUK, MISE705SLCIS, MWDA75128WKCIS, NSL705LS, NWS7105GR, NWS7105L, NWS7105LB, NWS7105LUZ, PWC71040WEU, PWC71040WIT, PWC7104SCIS.L, PWC7104WCIS.L, PWC71071WEU, PWC71071WIT, PWC71072WIT, PWC71272WEU, PWC7127SAUS, PWC71472WEU, PWC81071WIT, PWC81072WEU, PWC81072WIT, PWC81272WEU, PWC81472WFR, PWC91071WIT, PWC91072WIT, PWC91271WEU, PWDC7142WUK, PWDC8127WUK, PWDE7124SIT, PWDE7124WEU, PWDE71273WIT, PWDE81473SIT, PWDE81473WEU, PWDE81473WFR, PWDE8147SUK, PWDE91473SIT, PWDE91473SUK, PWE61041SEU, PWE7104SCIS.L, PWE7104WCIS.L, PWE71072SEU, PWE7107SCIS.L, PWE71271SEU, PWE71271WEU, PWE71272WIT, PWE71272WPL, PWE71273SIT, PWE7127SCIS.L, PWE71420WUK, PWE71472WDE, PWE81271WEU, PWE81272WEU, PWE81272WFR, PWE81272WIT, PWE81273SIT, PWE81472SEU, PWE81472SFR, PWE81472WEU, PWE8147SAUS, PWE81672WEU, PWE81673WDE, PWE91272SEU, PWE91272SIT, PWE91272WEU, PWE91272WUK, PWE91273SEU, PWE91273SIT, PWE91472SUK, PWE91472WUK, PWE91672WUK, PWSC5104WCIS.L, PWSC60871WIT, PWSC6104WCIS, PWSC61070SEU, PWSC61070WEU, PWSC61070WIT, PWSC61071WIT, PWSC61072WIT, PWSC6107SCIS.L, PWSE61070SEU, PWSE61070WEU, PWSE6107SCIS.L, PWSE6107WCIS.L, PWSE61270SEU, PWSE61270WEU, PWSE61271SIT, PWSE61271SPL, PWSE61271WPL, PWSE61272SIT, PWSE6127SCIS.L, XWA71083XWWBBTK, XWA71283WAUS, XWA71283WTK, XWA71283XWEU, XWA71452KUK, XWA71483XWDE, XWA71483XWEU, XWA81052XWTK, XWA81082XWWGGIT, XWA81083XWTK, XWA81252XKUK, XWA81252XSFR, XWA81252XWUK, XWA81252XWWBBFR, XWA81252XWWWGEU, XWA81283XWAUS, XWA81283XWEU, XWA81482XSUK, XWA81482XWFR, XWA81482XWUK, XWA81682XSUK, XWA81682XWUK, XWA81682XWUKC, XWA91082XWWGGIT, XWA91082XWWWGEU, XWA91482XWFR, XWA91683XWUK, XWA91683XWUKC, XWC61051WEU, XWC61252WFR, XWC71051WEU, XWC71252SFR, XWC71252WFR, XWC81051XWWGGEU, XWC81251XWEU, XWC81252XWFR, XWC81483XSUK, XWC81483XWUK, XWD61452WUK, XWD71083WTK, XWD71283KTK, XWD71283WEU, XWD71452SUK, XWD71452WUK, XWD71683XWDE, XWD81283XSTK, XWD81284XWSSGTK, XWD91082XWWGGEU, XWD91283XWKKCTK, XWDA751280XWKKKIT, XWDA75128XSUK, XWDA75128XWKKKCIS, XWDA75128XWUK, XWDA751480XWFR, XWDA751480XWFR.1, XWDA751480XWSSSEU, XWDA751480XWUK, XWDA751480XWWWGEU, XWDA751680XWDE, XWDA751680XWEU, XWDA751680XWUK, XWSA610517WUA, XWSA61082XWWGGIT, XWSA61253WEU, XWSB61251WUK, XWSC61251WUK, XWSC61252SUK, XWSNA610518WUA, XWSND61253WEU, XWSRA610519WUA
- Whirlpool: AM8F4, BHWD125SG, CCPFU643, CCPFU743, CCPFU843, EW8F4, F2086, F2106, F2126, HWM8F4, IG9200IT, PWWTX75L6DE, S1053XEX, S842XEX, S842XHK, SGE12XUK(NW), STALLBARWM5L, STALLBARWM6D, SW1410, SW2610, SW3610, SWD1053XHK, W42.08CSI, W42.10CSI, W53.10CSI, W53.12CSI, WA212B, WA212C, WA214B, WA214C, WASHINGMACHINEBAK6, WASHINGMACHINEBAK7, WASHINGMACHINEBAK8, WCL6100SA, WD1264XAUS, WDFB8614AJW, WDI651WH, WM 5H08AE1W, WM 6N10CM1W, WMS35106BD, WMS35106WD, WMXS15104WD
- Creda: IWD12, IWM12, WMA10PE, WMA30PE, WMA31PE, WMA32PE, WMA33PE
- Ariston: 36536, A1124UK, A1200WD, A1234UK, A1324UK, A1400SWD, A1400WD, A1435SUK, A1435UK, A1535UK, A1600WD, A1635UK, AA1000BFR, AAB1300FR, AAX116LFR, AAX126LFR, AAX149LFR, AB103MTK, AB103TK, AB104IT, AB104XTK, AB105TK, AB107PT, AB108XEO, AB108XIT, AB63EX5060HZ, AB63XGR, AB64EX115/60, AB65XEO, AB66IT, AB66XIT, AB66XIT(BG), AB67XIT, AB83TK, AB84IT, AB84PT, AB84XTK, AB87XIT, AB88DAG, AB88DEX, AB88XIT, AB95AUS, AB95EU, AB95TK, ABS66XIT, AC106BFR, AC120LIT, AC128LFR, AC80LIT, AC96BFR, AD1200IT, AD1200TK, AD1600FR, AD1600IT, AD1600PXU, AD1600UK, ADS1200EX, AIB12UK, AL102PFR, AL107XFR, AL108DAG, AL108DEX, AL108DK60HZ, AL108XBE, AL108XSTK, AL108XTK, AL109EU, AL109K60HZ, AL109SLFR, AL109XAUS, AL109XEU, AL109XEX, AL109XIT, AL109XSK, AL10UK, AL118DTK, AL128DAUS, AL128DEX, AL128DSAUS, AL128XBE, AL129SLBE, AL129X, AL129XEU, AL129XSK, AL129XTK, AL12SUK, AL12UK, AL149SLSK, AL149XEX, AL149XSK, AL14UK, AL169XAUS, AL169XEU, AL169XSK, AL65PT, AL67XHCGR, AL68EU, AL68XEX, FDG9620BSEX60HZ
- Hotpoint-Ariston: ARGF102STK, ARL62TK/E, ARMXXD1097RU, ARMXXD1290EU, ARMXXD1297RU, ARMXXF145FR(ARCADIA), ARMXXF1690EU, ARMXXL1057RU, ARMXXL125EU(ARCADIA), ARMXXL1297RU, ARSF105CIS/S, ARSL100CSIL(ARCADIA), ARSL103CISL, ARSL1051UA, ARSL105CSI.L, ARSL105CSIL(ARCADIA), ARSL85CSIL(ARCADIA), ARUSF1051PL, ARUSF105CIS, ARUSL105CIS(ARCADIA), ARUSL851UA, ARUSL85CIS(ARCADIA), ARXGD1291TKS, ARXL85UZ, ARXXF1451FR, ARXXF145FR.T, ARXXL1051IT, ARXXL105IT.T, AVDK7129CIS, AWM1081EU, AWM108EU.N, AWM108(EU).N/E, AWM1297RU, CDE129ALL/HA, ECO6L1051IT, ECO6L1051IT.C, ECO6L1052IT, ECO6L105IT/E, ECO6L851IT, ECO7L1051EU, ECO7L1051EU.T, ECO7L1252EU, ECO7L1252EU.M, ECO7L1252EU.T, ECO8D1492KEU, ECO8D1492KEU/E, ECO8L1051IT, ECO8L109IT, ECO8L109IT/E, ECO8L1252EU, ECO8L1252EUM, ECO9L1092IT, ECOS6L1051EU.T, ECOS6L1052EU, ECOS6L1052EUM, ECOS6L851EU, ECOS6L851EU.T, EFMF1023FR, EFMF1043FR, EFMF823FR, EFMF843FR, EFMF943FR, EFMF943FR.C, FMD863SK, FMD924BTK, FMD924STK, FMD963BSK, FMF801TK, FMF803BIT, FMF903TK, FMF923BSTK, FMF923KEU, FMF923KTK, FMF923TK, FMF923TK.C, FMG1023BTK, FMG802STK, FMG923BIT, FMG924MTK, FML903IT.C, HAD74FFR, HAD74FFR58LT, HAF921FR/S, HAF921SFR, HF8B593PUK, LBE129ALL/HA, LBE68ALL/HA, LBE88ALL/HA, VMG9009B, WD420G, WD420P, WMF823KFR, WMF923EU.C, WMG9018BCIS, WML803BEU, WML902EU.C, WML922BFR
- Merloni: S1053XEX, S842XEX, S842XHK, WA8XSIT, WA8XSPT, WD12XUK, WE16XNL, WI60XEX, WIE168NL, WIE87IT, WIL101TK, WIL166NL, WIL95EX, WILB12EU, WIXL101TK, WIXL106IT
- Terzi: LWD1053XEX, S1053XEX, S842XEX, S842XHK, SWD1053XHK, W42.08CSI, W42.10CSI, W53.10CSI, W53.12CSI, W60T10CSI, WD1264XAUS
- General Electric: WWH7709, WWH9709FWW, WWH9809FWW
- Leran: WMS35106BD, WMS35106WD, WMXS15104WD
- Miostar: WASHINGMACHINEBAK6, WASHINGMACHINEBAK7
- Privileg: CCPFU643, CCPFU743
- Scholtes: MLE129ALL, MLE12X
- Baumatic: BWD12
- Secondi Marchi: SGE12XUK
Compatible Brands
- Hotpoint, Indesit, Whirlpool, Creda, Ariston, Hotpoint-Ariston, Merloni, Terzi, General Electric, Leran, Miostar, Privileg, Scholtes, Baumatic, Secondi Marchi
Please check your appliance model number and compare the original part before ordering.
Repair Difficulty
Moderate. Unplug the machine, release the door seal clamp band and fold back the seal, then undo the two interlock screws on the front panel. Reach behind to unplug the wiring connector, fit it to the new interlock, and refit in reverse. Run a short rinse to check the door locks and releases.
Typical Tools Required
- Flat-head screwdriver
- Torx or Phillips screwdriver (depending on model)
Description
Part number C00306612, also listed as 482000023482. Before replacing the interlock, check that the door catch on the door itself is not broken or bent, as a damaged catch can stop a good interlock from locking.
Door interlocks differ between models, even within one brand, so please match the part number or check your model number in the list above. If you are unsure, send us your model number and we will check it for you.
Safety Notice
Electrical or gas appliance parts should only be fitted by a suitably competent person. Always isolate the appliance before inspection or repair and ensure correct safety checks are carried out after fitting.
Electrical or gas appliance parts should only be fitted by a suitably competent person. Always isolate the appliance before inspection or repair and ensure correct safety checks are carried out after fitting.
Compatibility Disclaimer
Brand names, model numbers and part numbers are used for identification and compatibility guidance only. This part should be checked against the original appliance model number and existing part before ordering.
Brand names, model numbers and part numbers are used for identification and compatibility guidance only. This part should be checked against the original appliance model number and existing part before ordering.
Environmental Notice
Replacing a faulty appliance part can help extend the life of your appliance and reduce unnecessary waste.
Replacing a faulty appliance part can help extend the life of your appliance and reduce unnecessary waste.
