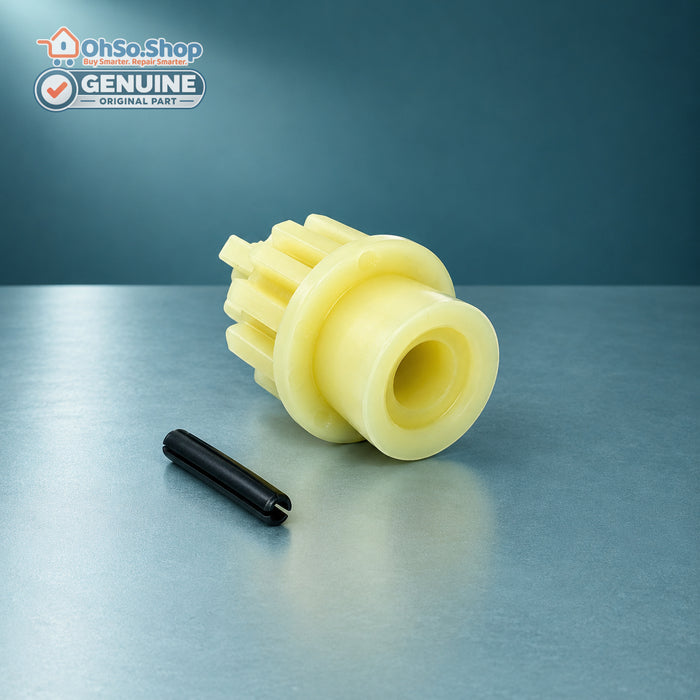

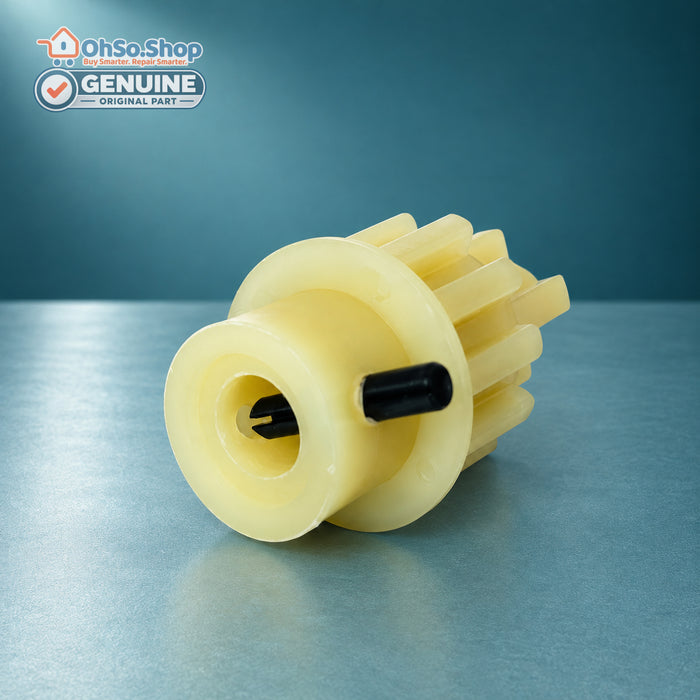

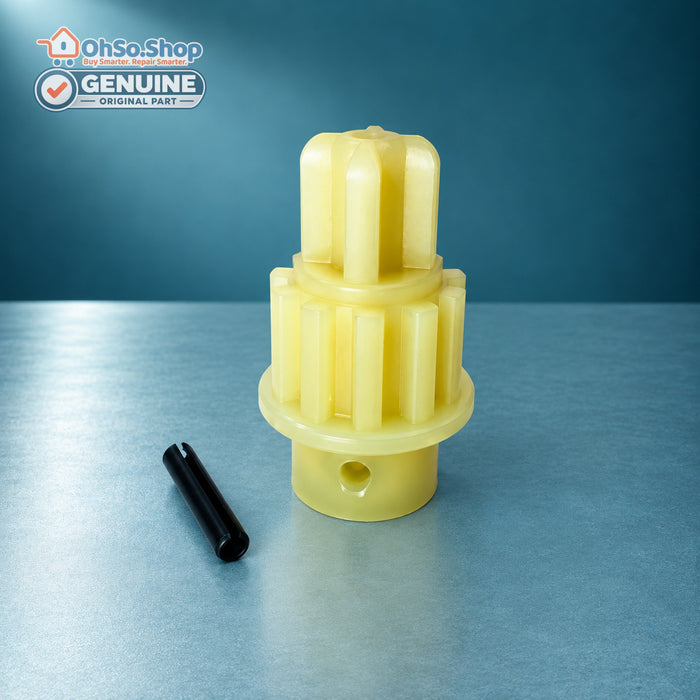

Genuine Kenwood Chef & Major Small Pulley & Tension Pin 650350

Genuine Kenwood Chef & Major Small Pulley & Tension Pin 650350

Get your Kenwood Chef or Major mixer driving properly again with this genuine small pulley and tension pin, part number 650350 (also listed as KW650350). The small pulley sits on the motor shaft and turns the drive belt that powers the gearbox, so when its teeth wear or the pin shears the motor can run while the beater barely turns. It is listed for a wide range of classic Chef, Chef Premier and Major stand mixers, plus the matching BL900 series blenders.

Product Details

• Product Type: Stand mixer small motor pulley with tension pin
• Main Part Number / MPN: 650350
• Alternative / Manufacturer References: KW650350
• Part Category: Mixer drive and belt parts
• Appliance Types: Kenwood Chef and Major stand mixers, selected Kenwood blenders
• Brand Compatibility: Kenwood
• Part Type: Genuine Original Part
• Pack Includes: 1 x small pulley, 1 x tension pin

What This Part Does

Inside the base of a Chef or Major, a toothed belt links a small pulley on the motor shaft to a larger pulley on the gearbox. This small pulley is the driving end of that belt. The tension pin passes through the pulley and the motor shaft, locking them together so the motor power reaches the bowl tools and the outlets.

Common Fault Symptoms

• The motor runs but the beater or outlets turn slowly, intermittently or not at all.
• The drive slips or stops when mixing heavy dough or a full bowl.
• You can hear clicking, grinding or a rattling noise from the base of the mixer.
• The pulley teeth look worn, cracked or rounded, or the pulley is loose on the shaft because the pin has broken.

Known Compatible Brands & Models

Repair Difficulty

Moderate. You will need to remove the base cover and drive belt, then drive the old pin out of the motor shaft with a pin punch while supporting the shaft. Fit the new pulley, tap in the new pin and refit the belt. If the belt shows worn or missing teeth, it is worth replacing it at the same time.

Typical Tools Required

• Screwdriver to remove the base cover
• Pin punch and small hammer
• A block to support the motor shaft while driving the pin

Description

Kenwood Chef and Major mixers are built to last for decades, and the small motor pulley is one of the wearing parts that keeps them going. Heavy dough, long mixing times and a tired belt all take their toll on the pulley teeth over the years.

Replacing the pulley and pin together restores a positive drive between the motor and the gearbox, so the mixer can handle full loads again. Supplied as a genuine Kenwood part with a new tension pin, ready to fit.
