Genuine Vestel Tumble Dryer Heating Element 1600W 900W 32043420

Genuine Vestel Tumble Dryer Heating Element 1600W 900W 32043420

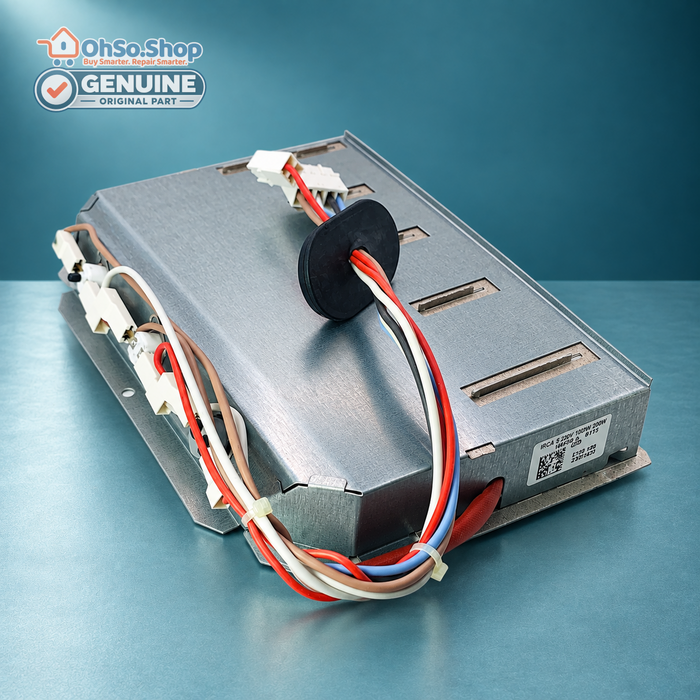

Restore full drying heat to your tumble dryer with this genuine Vestel heating element, part number 32043420. It is a complete 1600W + 900W heater assembly with its thermostats and NTC temperature sensor, used in condenser dryers built by Vestel and sold under brands including Vestel, Logik, Sharp and Electra. If your dryer turns but the clothes come out cold or still damp, a failed heater is one of the most common causes.

Product Details

• Product Type: Tumble dryer heater assembly, 1600W + 900W
• Main Part Number / MPN: 32043420
• Alternative / Manufacturer References: Vestel description: Heater (1600-900W-2 TH(TP)-1 NTC). Replaces earlier reference 32031612
• Part Category: Tumble dryer heating elements
• Appliance Types: Condenser tumble dryers
• Brand Compatibility: Vestel, Logik, Sharp, Electra, Bush, Nordmende (selected models)
• Part Type: Genuine Original Part

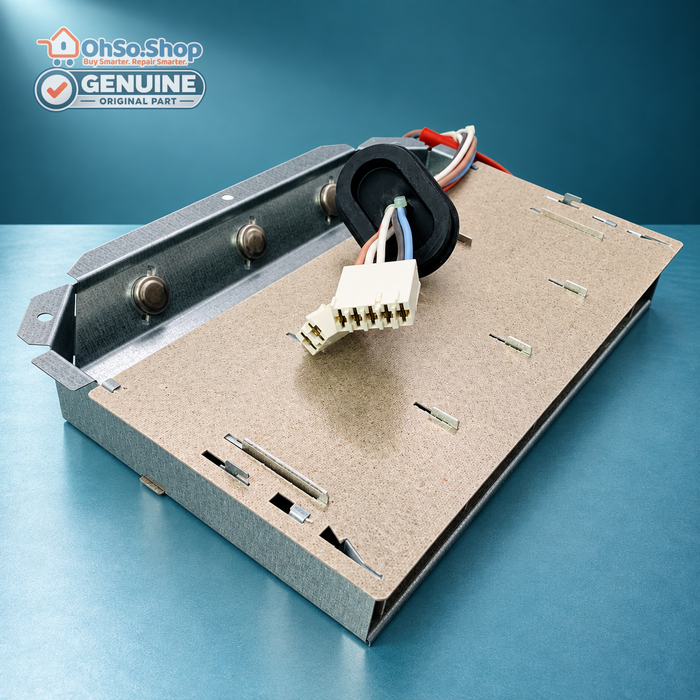

• Pack Includes: 1 x heater assembly with 2 thermostats and 1 NTC sensor

What This Part Does

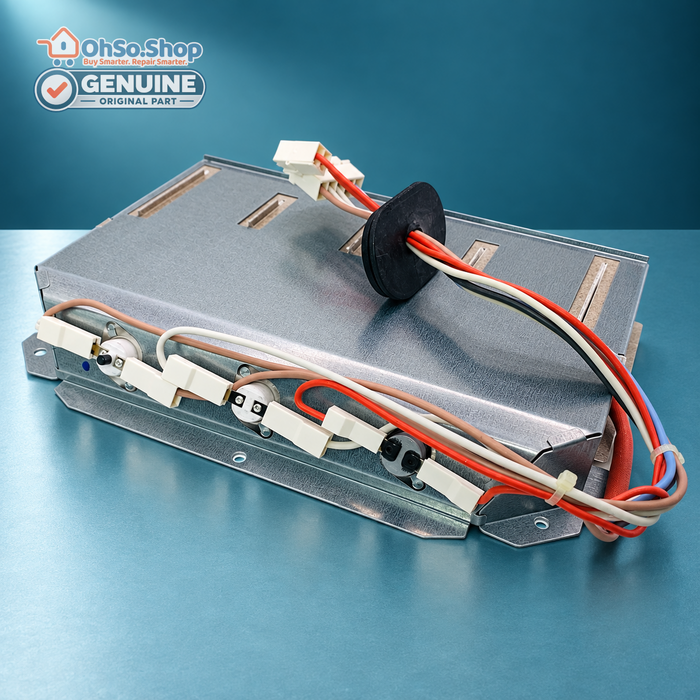

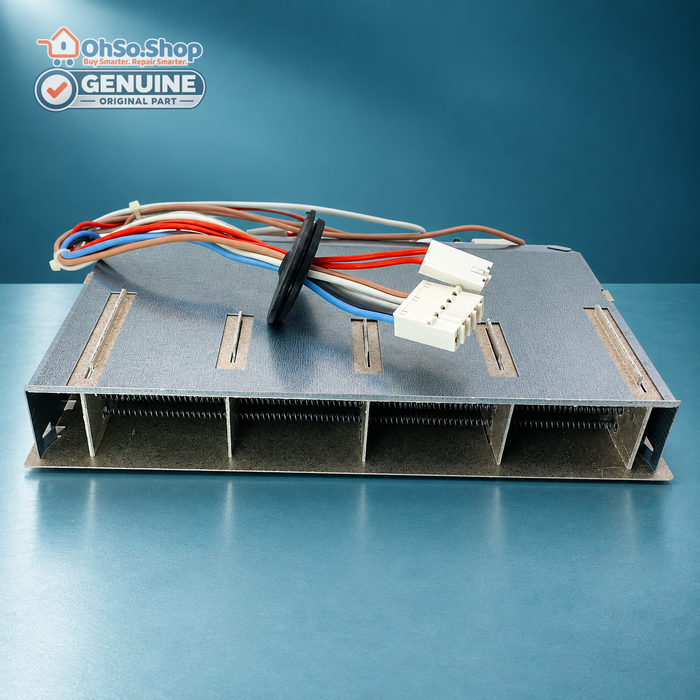

The heating element warms the air that is blown through the drum. It has two heating circuits, 1600W and 900W, so the dryer can switch between high and low heat. Two thermostats cut the power if the heater overheats, and the NTC sensor reports the air temperature to the control board so it can manage the drying cycle.

Common Fault Symptoms

• The drum turns but the clothes stay cold or damp.
• The dryer only seems to work on low heat, or drying takes far longer than it used to.
• The dryer trips the electrics when the heat comes on.
• The heater keeps cutting out partway through a cycle.

Known Compatible Brands & Models

Repair Difficulty

Moderate: the back panel of the dryer has to be removed to reach the heater housing. The heater, thermostats and sensor come as one assembly, so the connections are simply moved across from the old unit. A multimeter is useful to confirm the old heater has failed.

Typical Tools Required

• Screwdriver set (Torx and Phillips)
• Multimeter for testing continuity

Description

Heaters and their thermostats often fail because fluff builds up and restricts airflow. When you fit the new element, clean the filters, the condenser and the heater housing so the new part is not put under the same strain.

This is a genuine Vestel part supplied as a complete assembly. Your model number is on the rating label, usually inside the door. If you are unsure whether this heater fits your dryer, send us your model number and we will check it for you.
