Green Spot Thermostat Kit 106°C 130°C for Hotpoint TDC Creda TCR
Green Spot Thermostat Kit 106°C 130°C for Hotpoint TDC Creda TCR
If your tumble dryer has stopped heating, or it heats for a while and then goes cold, a tripped or failed thermostat is a common cause. This green spot kit contains both heater cut-outs, a 106°C auto-reset thermostat and a 130°C one-shot cut-out, and is for selected Hotpoint, Creda and Indesit condenser tumble dryers made after May 1999.
Quality replacement parts, chosen with care.
The OhSo.Shop Essentials range brings together carefully selected replacement parts that deliver the ideal balance of quality, reliability and value. Rather than simply sourcing the cheapest alternatives, we work with trusted manufacturers and suppliers to offer products we'd be happy to use ourselves.
Every part is selected to provide dependable everyday performance, helping you complete repairs with confidence while keeping costs sensible.
Dependable quality. Honest prices. Everyday repairs.
Buy Smarter. Repair Smarter.
Product Details
- Product Type: Tumble dryer thermostat kit (green spot)
- Compatible With: C00095566

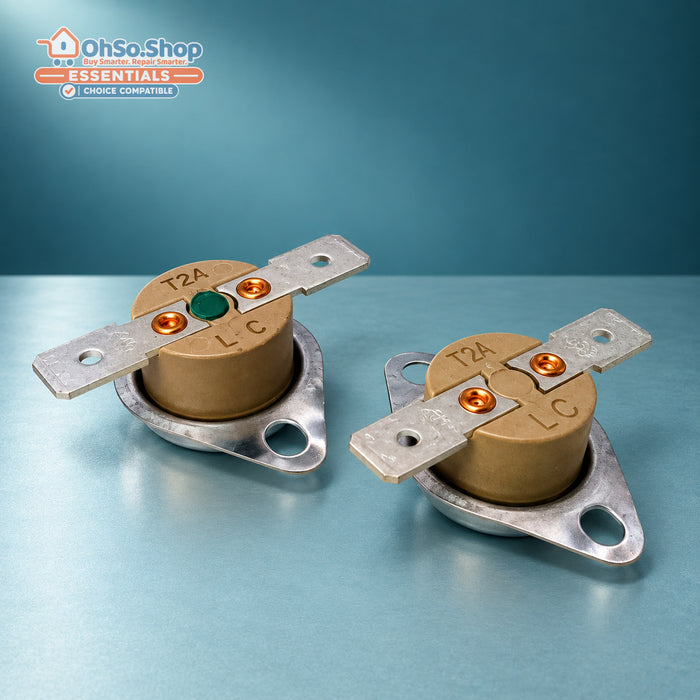

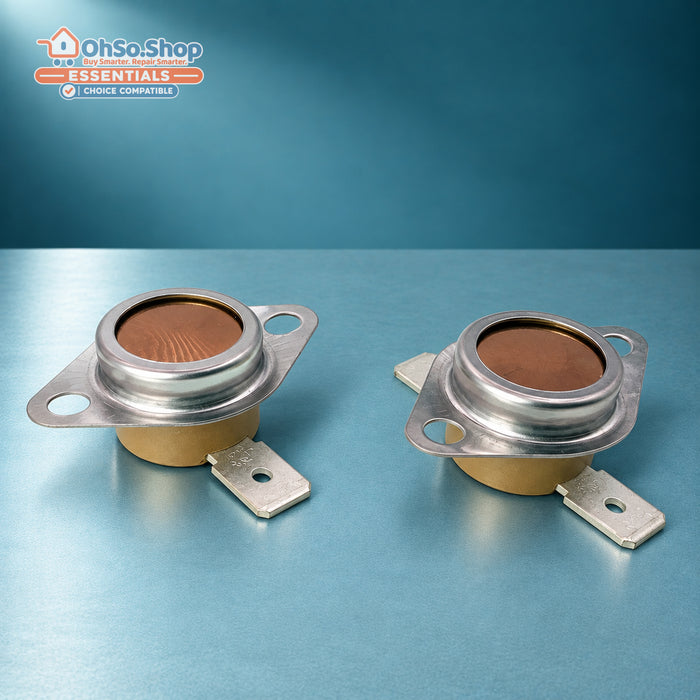

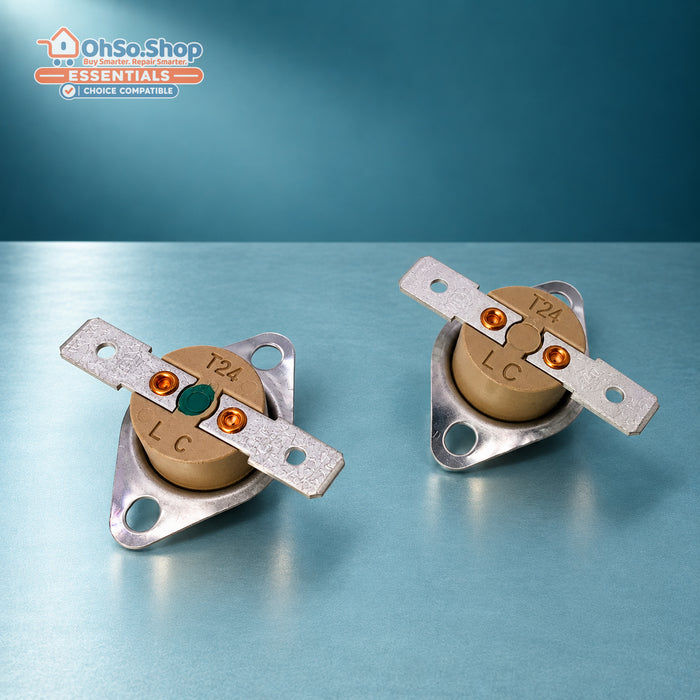

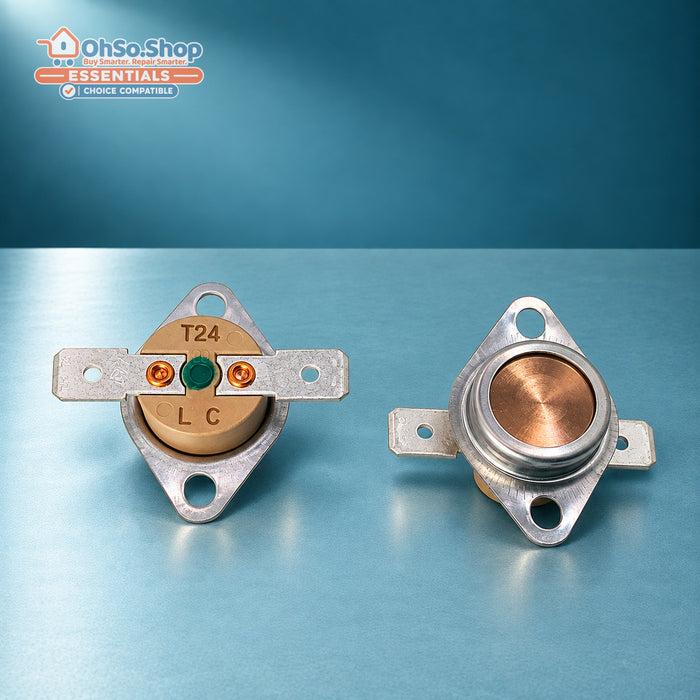

- Kit Contents: 1 x 106°C auto-reset thermostat, 1 x 130°C one-shot cut-out (green spot)
- Date Range: For models made after May 1999 (date code 65 onwards)
- Spot Colour: Green (some suppliers describe it as green / yellow spot)
- Part Category: Tumble dryer thermostats
- Appliance Types: Condenser tumble dryers
- Brand Compatibility: For selected Hotpoint, Creda and Indesit dryers (also listed for Ariston, Crusader, Electra, Jackson, Proline, Cannon and Scholtes)
- Part Type: Compatible Replacement Part
- Pack Includes: 2 x thermostats
What This Part Does
The two cut-outs sit on the heater housing. The 106°C thermostat switches the heater off if the air gets too hot and resets itself as it cools. The 130°C green spot cut-out is a one-shot safety device: once it trips it stays open and must be replaced. When either one trips or fails, the dryer keeps turning but blows cold air. If either fails, replace both.
Common Fault Symptoms
- The drum turns but the dryer blows cold air
- The dryer heats for a short time and then goes cold
- Clothes are still damp after a full programme
- The dryer has overheated, often after a blocked filter or condenser
- A thermostat tests open-circuit on a meter
Known Compatible Brands & Models
View compatibility information
This kit is listed by UK parts suppliers for the Hotpoint and Creda condenser dryer models below, including 6kg condenser models made after date code 65 (May 1999). It is a sample, not a full list.
Compatible Models
- For Hotpoint, Creda and related models: TC71N, TC71P, TC71PE, TC71X, TC72N, TC72P, TC72PE, TC72X, TCM65A, TDC30N, TDC30P, TDC30PE, TDC30S, TDC32N, TDC32P, TDC32S, TDC60N, TDC60P, TDC60PE, TDC60S, TDC60YS, TDC62N, TDC62P, TDC62S, TDC6A, CT61C, TCR13, TCR14, T601CW, T602CW, T620CW, T622CW, T630CW, T632CW, J601CW, 37527, 37630, 37667, 37747, 37764E, 37765X, 37774E, DDE7609FWW, DDE7702VWW, DDE7709FWW
Compatible Brands
- For Hotpoint, Creda and Indesit (also listed for Ariston, Crusader, Electra, Jackson, Proline, Cannon and Scholtes)
Please check your appliance model number and compare the original part before ordering.
Repair Difficulty
Moderate. Unplug the dryer and remove the back or side panel to reach the heater housing. Each thermostat is held by screws or a clip and has two spade connectors. Fit the 106°C and 130°C thermostats in the same positions as the old ones.
Typical Tools Required
- Screwdrivers to remove the rear or side panel
- Multimeter (optional) to test the old thermostats
- Phone camera to record which thermostat goes where
Description
This kit is compatible with C00095566. It replaces both heater cut-outs at once, which is recommended whenever either one fails. It suits models made after May 1999 (date code 65 onwards); earlier dryers use a different kit.
Thermostats usually trip because hot air cannot escape. Before fitting the new kit, clean the fluff filter, the condenser and any vent hose, or the new thermostats may trip too. Check your dryer's model number on the label inside the door and compare your old thermostats with the photos. If unsure, send us your model number and we will check it for you.
Electrical or gas appliance parts should only be fitted by a suitably competent person. Always isolate the appliance before inspection or repair and ensure correct safety checks are carried out after fitting.
Brand names, model numbers and part numbers are used for identification and compatibility guidance only. This part should be checked against the original appliance model number and existing part before ordering.
Replacing a faulty appliance part can help extend the life of your appliance and reduce unnecessary waste.
