Rold Washing Machine Door Interlock for Hotpoint Indesit Ariston C00254755

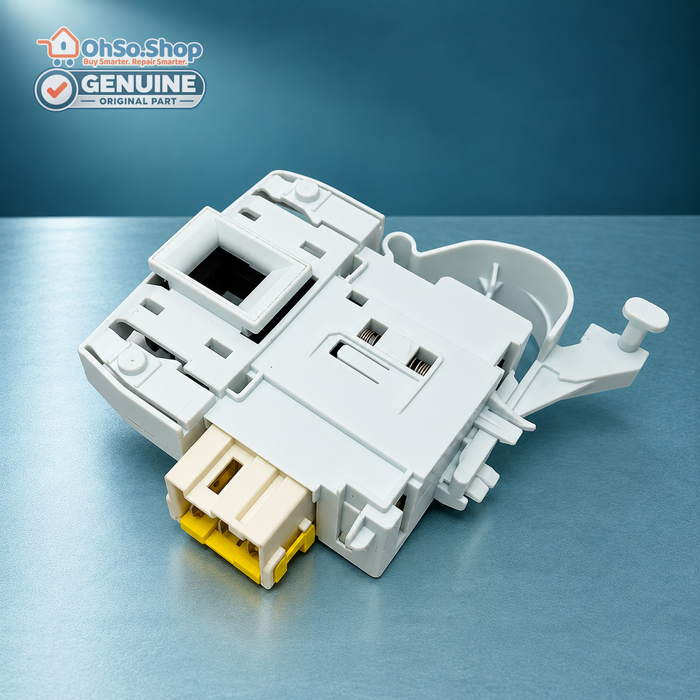

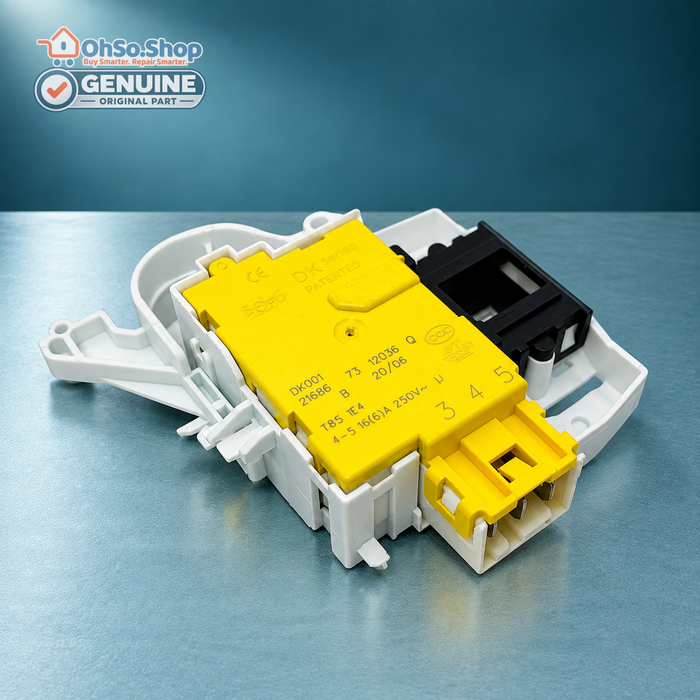

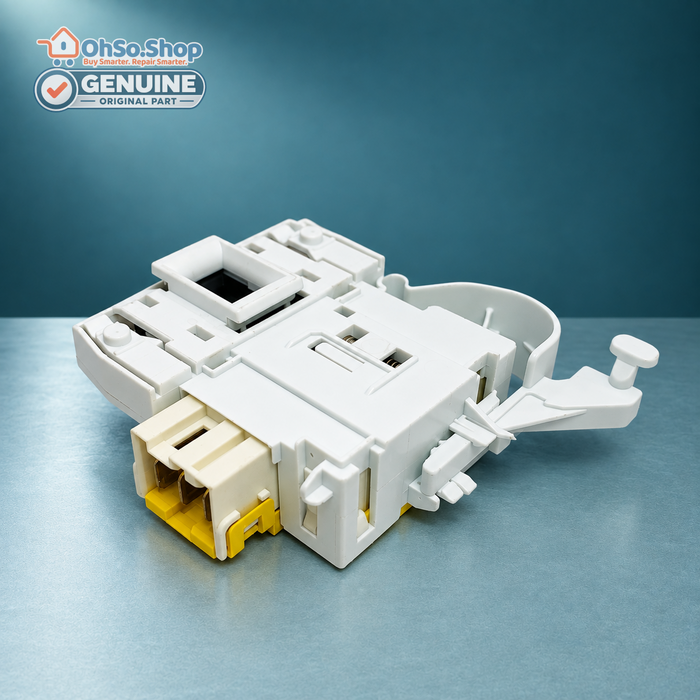

Rold Washing Machine Door Interlock for Hotpoint Indesit Ariston
If your washing machine will not start, the door will not lock, or it stays locked at the end of the wash, a faulty door interlock is one of the most common causes. This Rold door interlock is made to the original specification by Rold, the maker of the interlock fitted to many Hotpoint, Indesit and Ariston front-loading washing machines. It locks the door during the wash and tells the control board it is safe to fill and spin.
Product Details
- Product Type: Washing machine door interlock (door lock switch), 3 terminal
- Main Part Number / MPN: Replaces C00254755
- Alternative / Manufacturer References: Also replaces C00285597 and 482000023034
- Part Category: Washing machine door interlocks
- Appliance Types: Front-loading washing machines and washer dryers
- Brand Compatibility: For Hotpoint, Indesit, Ariston and Creda (selected models)
- Part Type: OEM Original Specification Part (made by Rold)
- Pack Includes: 1 x door interlock
What This Part Does
The door interlock sits behind the door catch. When a wash starts it locks the door and confirms to the control board that the door is shut, so the machine can fill and spin safely. After the wash it releases the door, usually after a short delay. If the interlock fails, the machine may refuse to start, stop mid-cycle, or keep the door locked.
Common Fault Symptoms
- The machine will not start and the door lock light flashes.
- The door does not click locked when you press start.
- The door stays locked after the wash has finished.
- The wash stops partway through with a door or lock error.
Known Compatible Brands & Models
View compatibility information
This interlock replaces C00254755 (also listed as C00285597 and 482000023034) and suits a wide range of Hotpoint, Indesit, Ariston and Creda washing machines. The models below are a sample, not a complete list. The design has been updated over the years, so it may look slightly different from your old interlock but fits and connects the same way.
Compatible Models
- Hotpoint BHWD129UK
- Hotpoint HV5L125PUK
- Hotpoint HV6L105PUK
- Hotpoint HV7L145PUK
- Hotpoint WDD740PUK
- Hotpoint WDF740AUK
- Hotpoint WMD940AUK
- Hotpoint WMF720PUK
- Hotpoint WML540PUK
- Indesit IWE7145BUK
- Indesit IWE81281UK
- Indesit IWDE7125BUK
- Indesit IWDE7145SUK
- Ariston ARXXL105EU
Compatible Brands
- Hotpoint
- Indesit
- Ariston
- Creda
Please check your appliance model number and compare the original part before ordering.
Repair Difficulty

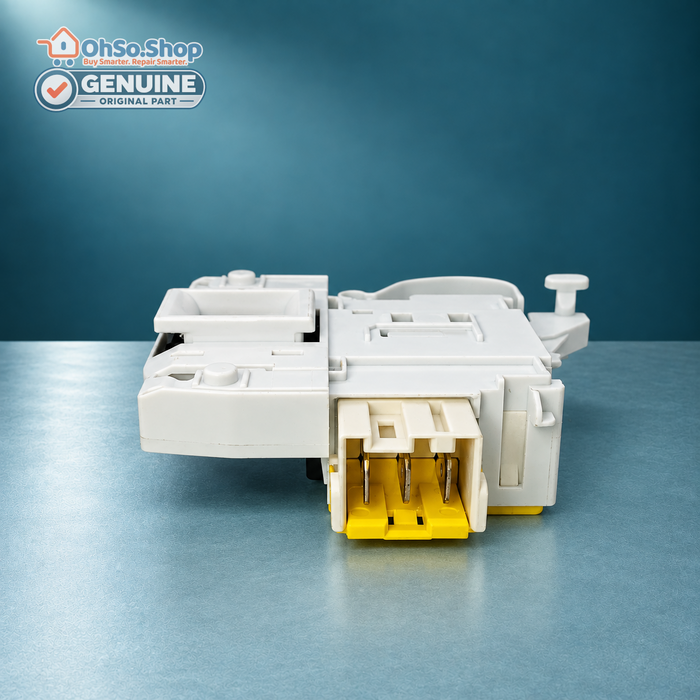

Easy to moderate: the door seal is eased back from the front panel to reach the two screws holding the interlock, then the connector block is unplugged and moved to the new part. No special tools are needed.
Typical Tools Required
- Screwdriver set (Torx and Phillips)
- Flat-blade screwdriver to ease the door seal clip
Description
Before replacing the interlock, check that the door hook is not broken and that the door closes squarely, as a damaged hook or hinge gives the same symptoms. Make sure the machine is empty of water before opening the door seal.
This interlock is made by Rold to the original equipment specification and replaces Hotpoint, Indesit and Ariston part C00254755. It is not Hotpoint-branded packaging. Your model number is on the rating label inside the door. If you are unsure whether it fits, send us your model number and we will check for you.
Electrical or gas appliance parts should only be fitted by a suitably competent person. Always isolate the appliance before inspection or repair and ensure correct safety checks are carried out after fitting.
Brand names, model numbers and part numbers are used for identification and compatibility guidance only. This part should be checked against the original appliance model number and existing part before ordering.
Replacing a faulty appliance part can help extend the life of your appliance and reduce unnecessary waste.
