Trigger Switch Button Compatible for Dyson V10 V11 SV12 SV14 Cordless Vacuum

Trigger Switch Button Compatible for Dyson V10 V11 SV12 SV14 Cordless Vacuum

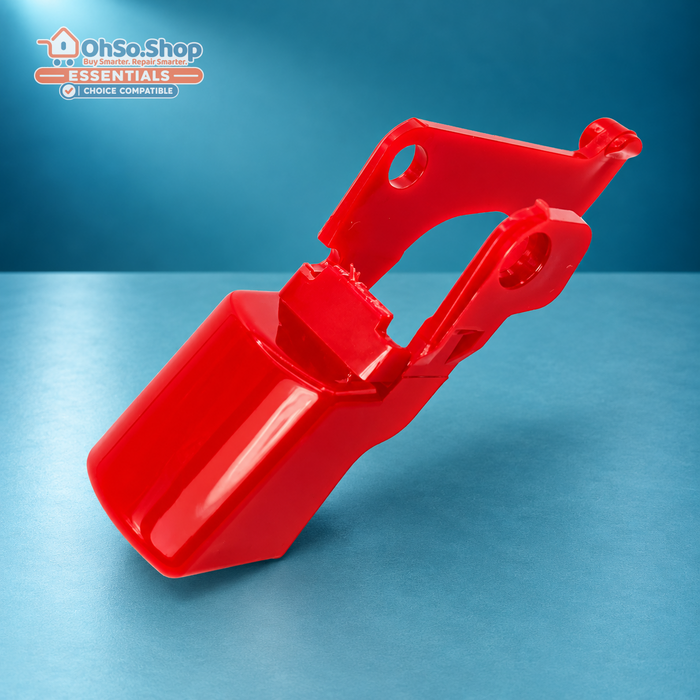

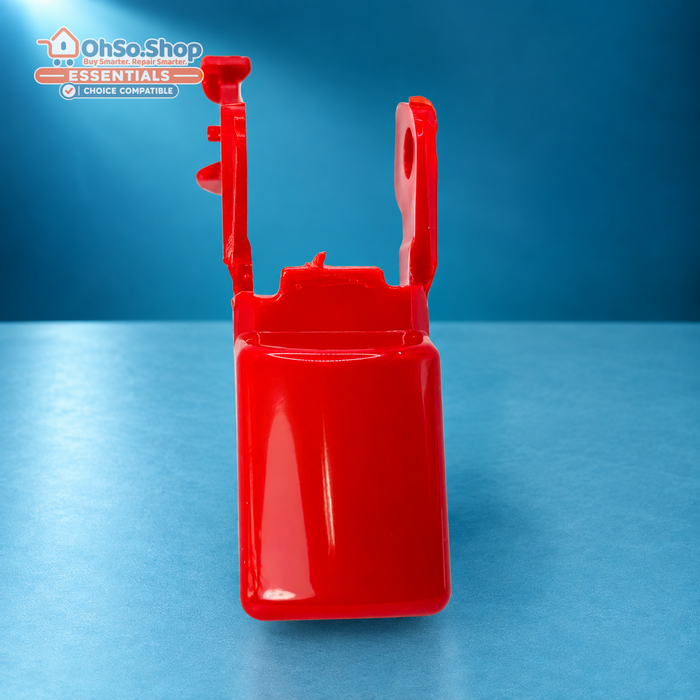

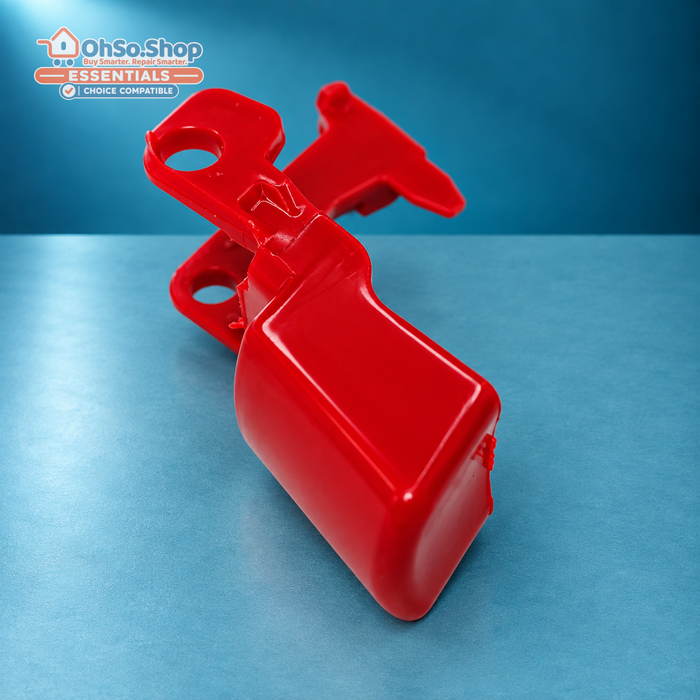

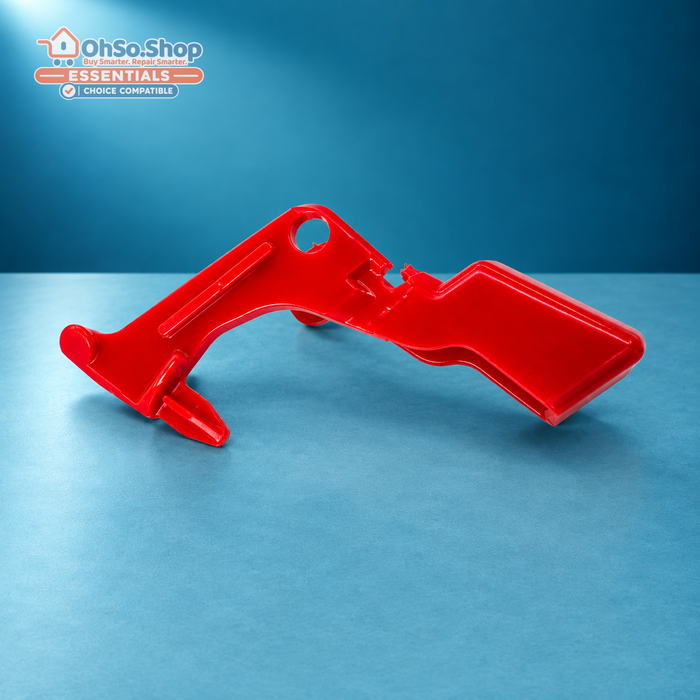

Get your Dyson cordless vacuum switching on and off properly again with this replacement trigger switch button. The trigger is one of the most common parts to break on the Dyson V10 and V11, often snapping at the pivot or sticking in the on position. This compatible red trigger suits the Dyson V10 (SV12) and V11 (SV14) models with a screw-in battery, and is a low-cost alternative to replacing the whole handle.

Product Details

• Product Type: Cordless vacuum trigger switch button
• Main Part Number / MPN: Not applicable: Dyson does not list this trigger as a separate numbered spare
• Alternative / Manufacturer References: None published
• Part Category: Vacuum cleaner switches
• Appliance Types: Cordless stick vacuum cleaners
• Brand Compatibility: Dyson V10 and V11 (screw-in battery models)
• Part Type: Compatible Replacement Part
• Pack Includes: 1 x red trigger switch button

What This Part Does

The trigger is the power button on the handle of your Dyson. Pressing it operates the switch that runs the motor, and releasing it switches the vacuum off. On the V11 it also works with the trigger lock. Because it takes pressure every time the vacuum is used, the plastic can crack or snap at the pivot, leaving the vacuum stuck on, hard to start or impossible to switch on at all.

Common Fault Symptoms

• The trigger has snapped, cracked or come loose from the handle.
• The trigger stays pressed in and the vacuum will not switch off.
• Pressing the trigger no longer starts the vacuum, even with a charged battery.
• The vacuum only runs if you press the trigger at an awkward angle.

Known Compatible Brands & Models

Repair Difficulty

Advanced: the handle area has to be fully dismantled to reach and replace the trigger. It is a practical job for a confident DIYer, but take photos as you go so everything goes back in the right order.

Typical Tools Required

• Torx screwdriver set
• Plastic prying tool

Description

Before ordering, check the battery, filter and brush bar. A vacuum that pulses or will not run is often caused by a flat or failing battery or a blockage rather than the trigger. If the trigger itself is broken, sticking or loose, this replacement is the part you need.

To check your model, look at the rating label and how the battery is fitted: this trigger is for screw-in battery V10 and V11 machines. It is a compatible replacement and is not manufactured by Dyson. If you are unsure, send us your model details and we will check before you order.
