Tumble Dryer Thermostat Kit 120°C 150°C for Hotpoint Indesit Creda

Tumble Dryer Thermostat Kit 120°C 150°C for Hotpoint Indesit Creda

If your tumble dryer turns but blows cold air, or heats for a while and then stops, one of the heater cut-outs has probably tripped or failed. This kit replaces both: a 120°C auto-reset cycling cut-out and a 150°C one-shot safety cut-out, for selected Hotpoint, Indesit, Ariston, Creda and Proline dryers fitted with DBK-made heater units.

Product Details

• Product Type: Tumble dryer thermostat cut-out kit
• Equivalent To: C00112196

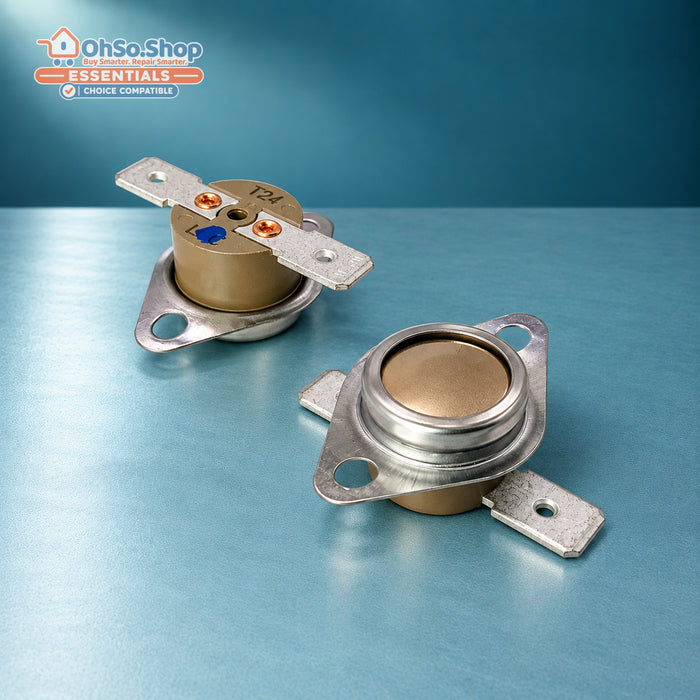

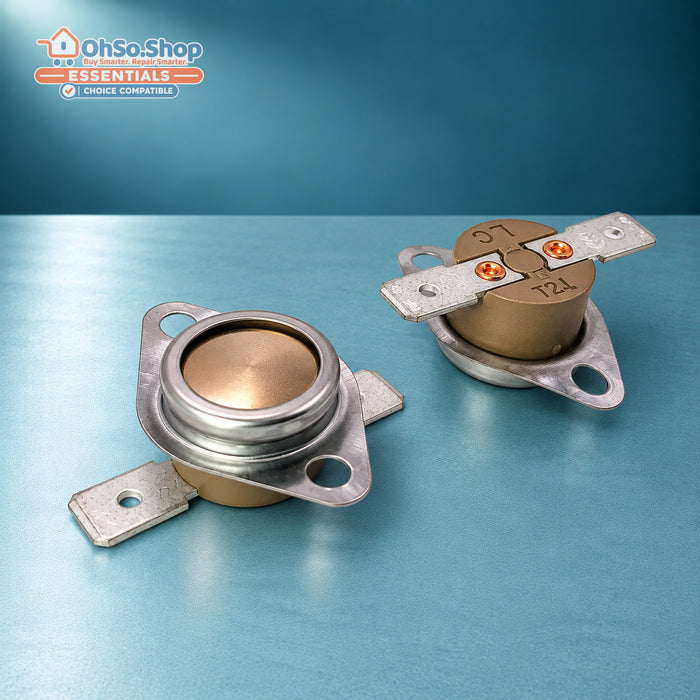

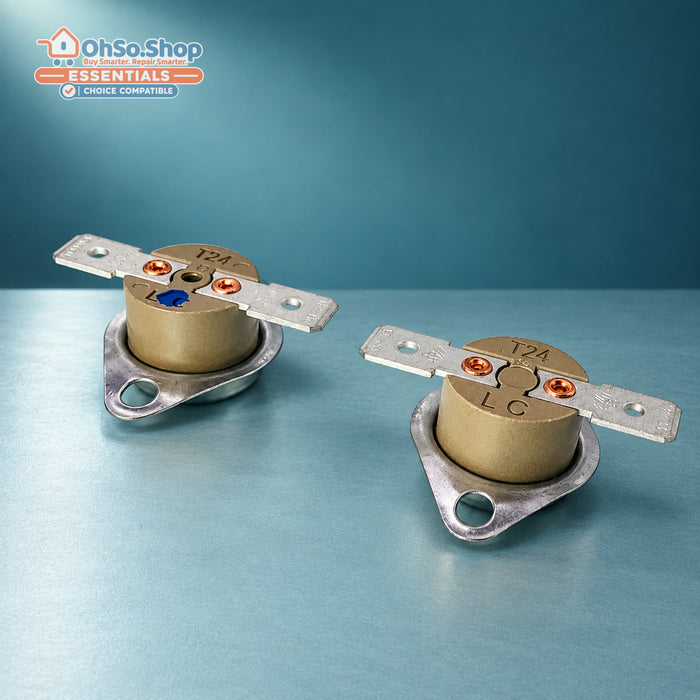

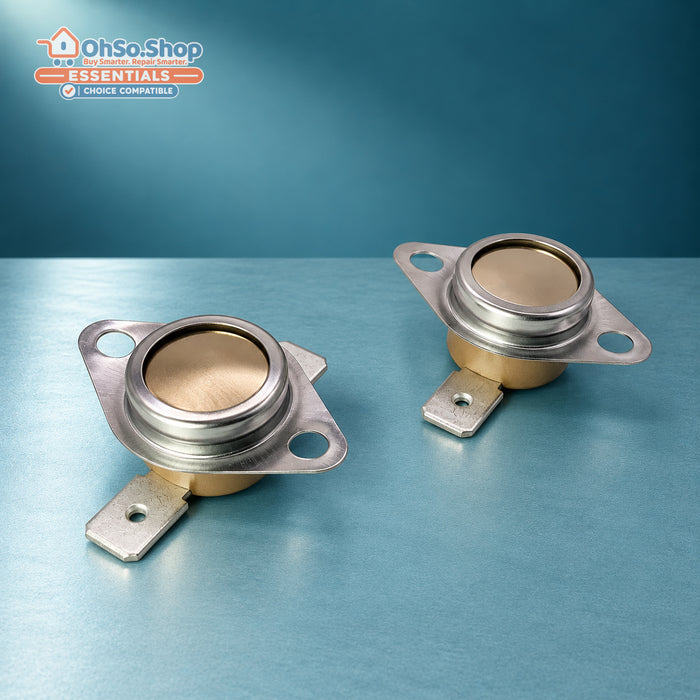

• Kit Contents: 1 x 120°C auto-reset cycling cut-out, 1 x 150°C one-shot cut-out
• Rating: 250V, 10A
• Heater Type: For dryers with DBK-produced heater units
• Kit Name: Known as the 'blue for red spot' kit
• Part Category: Tumble dryer thermostats
• Appliance Types: Tumble dryers
• Brand Compatibility: For selected Hotpoint, Indesit, Ariston, Creda and Proline dryers (also listed for Cannon and Scholtes)
• Part Type: Compatible Replacement Part
• Pack Includes: 2 x thermostat cut-outs

What This Part Does

The two cut-outs protect the heater. The 120°C cycling cut-out switches the heater off when the air gets too hot and resets itself as it cools. The 150°C one-shot cut-out is a last line of protection: once it trips it stays open and must be replaced. When either fails or trips, the drum keeps turning but the dryer blows cold air.

Common Fault Symptoms

• The drum turns but the dryer blows cold air
• The dryer heats briefly and then goes cold
• Clothes are still damp after a full programme
• The dryer overheated, often after a blocked filter or condenser
• A cut-out tests open-circuit on a meter

Known Compatible Brands & Models

Repair Difficulty

Moderate. Unplug the dryer and remove the rear panel to reach the heater. Each cut-out is held by screws or a clip and has two spade connectors. Fit the 120°C and 150°C cut-outs in the same positions as the originals, matching by temperature rather than spot colour.

Typical Tools Required

• Screwdrivers to remove the rear panel
• Multimeter (optional) to test the old cut-outs
• Phone camera to record which cut-out goes where

Description

This kit is equivalent to C00112196. It is known in the trade as the 'blue for red spot' kit: the spot colours on the supplied cut-outs may differ from your originals, so always match them by the stamped temperatures, 120°C and 150°C.

A tripped one-shot cut-out almost always means the dryer overheated. Clean the fluff filter, condenser or vent hose before fitting, or the new cut-outs may trip too. Check that your dryer has a DBK heater and compare your old cut-outs with the photos. If you are unsure, send us your model number and we will check it for you.
