Tumble Dryer Thermostat Kit White Spot 120°C 140°C for Hotpoint Creda

Tumble Dryer Thermostat Kit White Spot 120°C 140°C for Hotpoint Creda

If your tumble dryer turns but blows cold air, or heats for a while and then stops, one of the heater cut-outs has probably tripped or failed. This white spot TOC kit replaces both: a 120°C auto-reset cut-out and a 140°C one-shot safety cut-out, for selected Hotpoint, Indesit, Ariston, Creda and Proline tumble dryers.

Product Details

• Product Type: Tumble dryer thermostat cut-out kit (white spot, TOC type)
• Equivalent To: C00116598

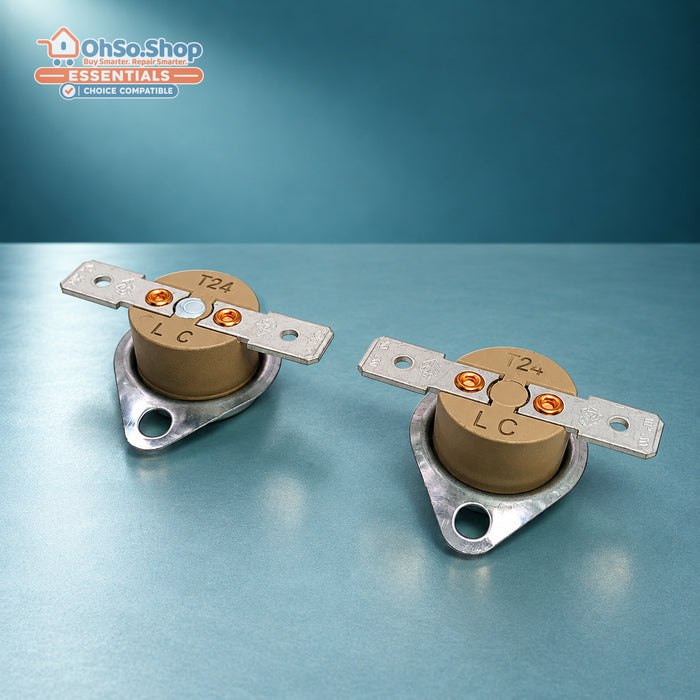

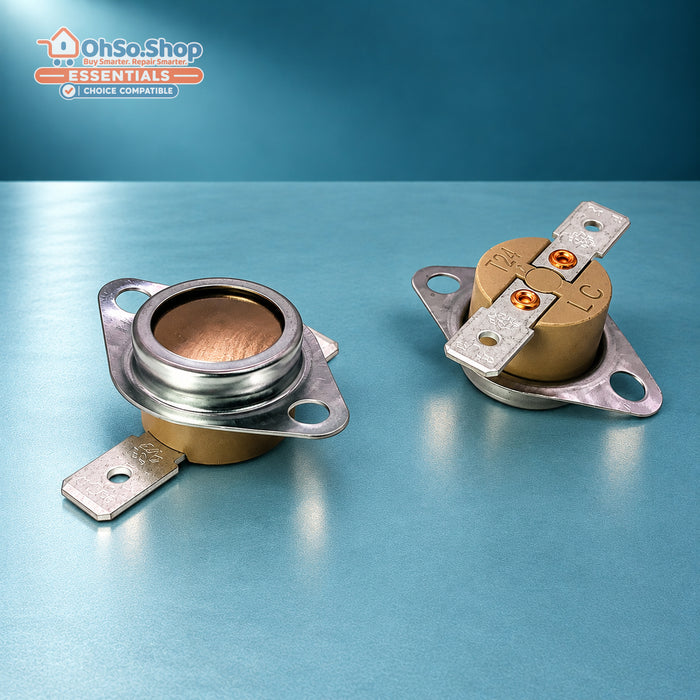

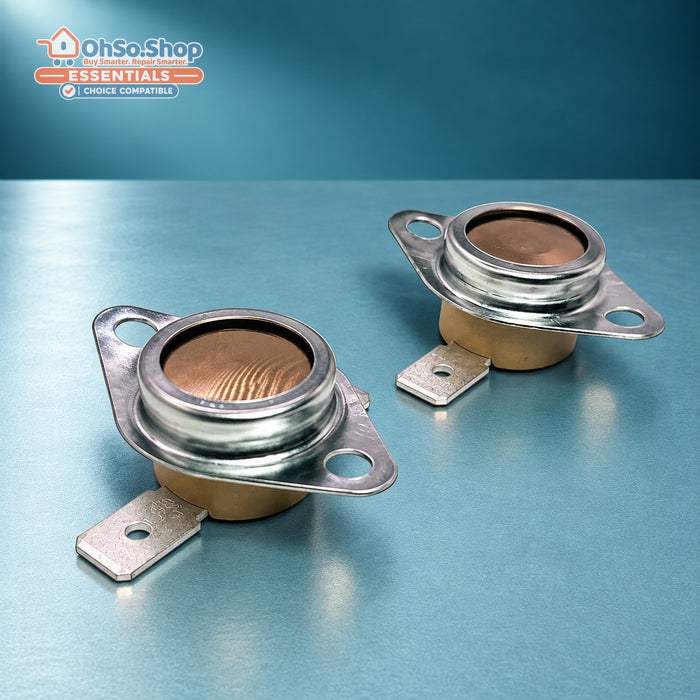

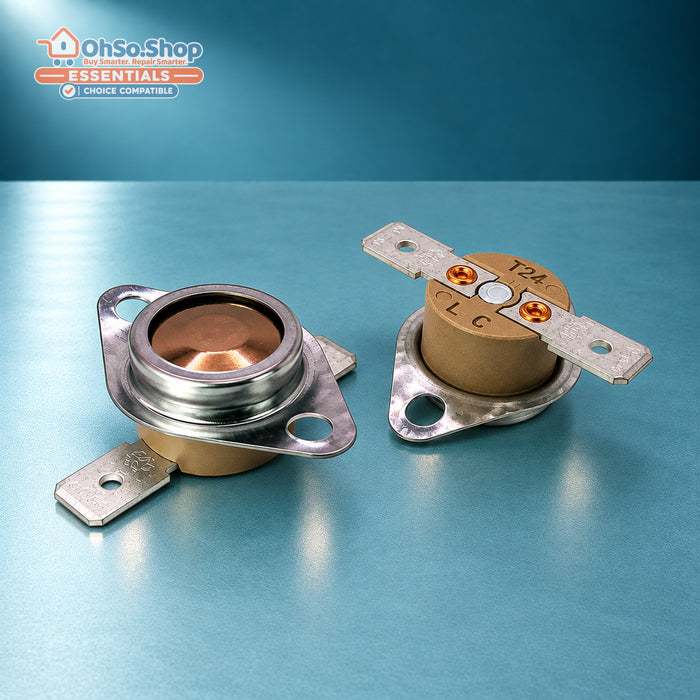

• Kit Contents: 1 x 120°C auto-reset cut-out, 1 x 140°C one-shot cut-out
• Rating: 250V, 10A
• Part Category: Tumble dryer thermostats
• Appliance Types: Tumble dryers
• Brand Compatibility: For selected Hotpoint, Indesit, Ariston, Creda and Proline dryers (also listed for Cannon and Scholtes)
• Part Type: Compatible Replacement Part
• Pack Includes: 2 x thermostat cut-outs

What This Part Does

The two cut-outs protect the heater. The 120°C cut-out switches the heater off when the air gets too hot and resets itself as it cools. The 140°C one-shot cut-out is a last line of protection: once it trips it stays open and must be replaced. When either fails or trips, the drum keeps turning but the dryer blows cold air.

Common Fault Symptoms

• The drum turns but the dryer blows cold air
• The dryer heats briefly and then goes cold
• Clothes are still damp after a full programme
• The dryer overheated, often after a blocked filter or condenser
• A cut-out tests open-circuit on a meter

Known Compatible Brands & Models

Repair Difficulty

Moderate. Unplug the dryer and remove the rear panel to reach the heater. Each cut-out is held by screws or a clip and has two spade connectors. Fit the 120°C and 140°C cut-outs in the same positions as the originals, matching them by their stamped temperatures.

Typical Tools Required

• Screwdrivers to remove the rear panel
• Multimeter (optional) to test the old cut-outs
• Phone camera to record which cut-out goes where

Description

This kit is equivalent to C00116598, the white spot TOC kit. The two cut-outs are stamped 120°C and 140°C; fit each one in the position of the original with the same temperature.

A tripped one-shot cut-out almost always means the dryer overheated. Clean the fluff filter, condenser or vent hose before fitting, or the new cut-outs may trip too. Check the model number inside the door and compare your old cut-outs with the photos. If you are unsure, send us your model number and we will check it for you.
