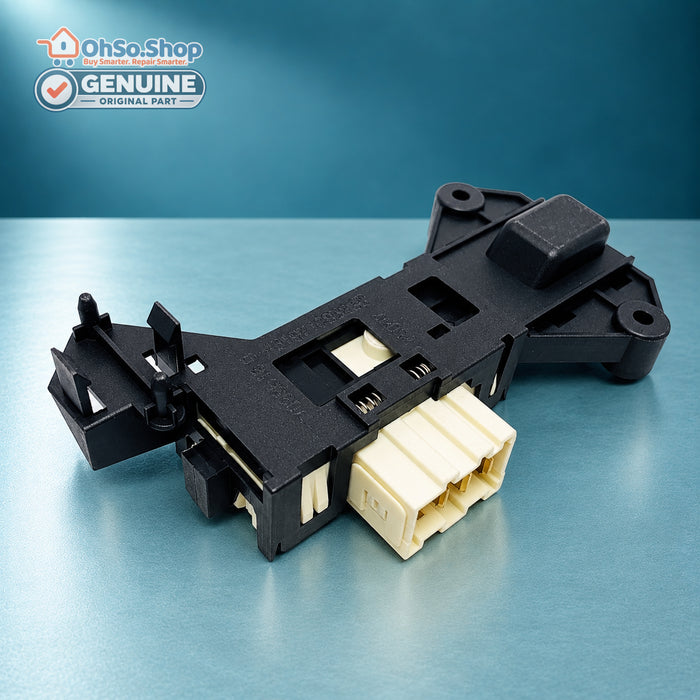

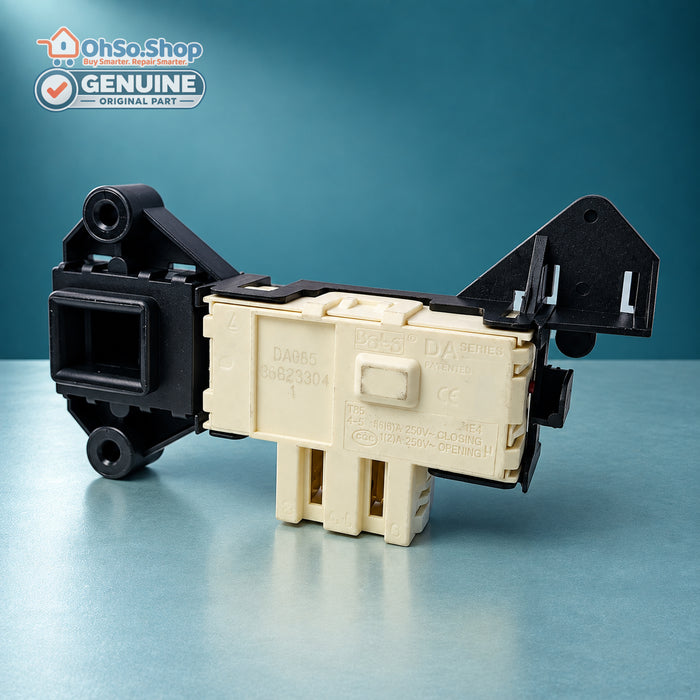

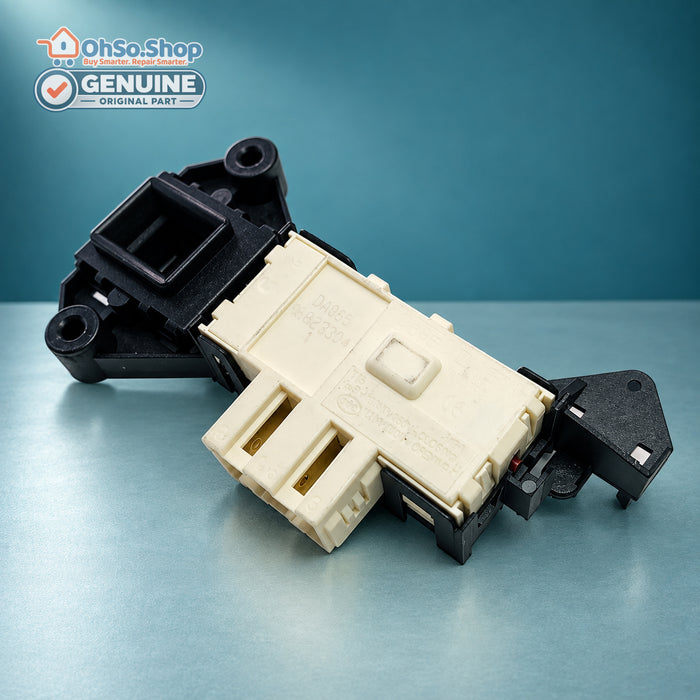

Washing Machine Door Interlock for Whirlpool, Bauknecht and Ignis

Washing Machine Door Interlock for Whirlpool, Bauknecht and Ignis

Get your washing machine starting again with this replacement door interlock for selected Whirlpool, Bauknecht and Ignis washing machines and washer dryers, including many Whirlpool AWO, AWO/D and AWM models. If the machine will not start, the door will not lock, or the door stays locked at the end of a wash, a faulty interlock is one of the most common causes.

Product Details

• Product Type: Washing Machine Door Interlock
• Terminals: 3 contacts, delay type (about 2 minutes)
• Compares To: Equivalent to 461971093281 (Rold DA069 / 6A069009)
• Part Category: Washing Machine Door Parts
• Appliance Types: Washing machines and washer dryers
• Brand Compatibility: For selected Whirlpool, Bauknecht and Ignis models
• Part Type: Compatible Replacement Part
• Pack Includes: 1 x door interlock

What This Part Does

The door interlock sits behind the door seal on the front of the cabinet. When a programme starts it locks the door and confirms to the control board that it is safe to fill and spin. This is a delay-type interlock: after the wash finishes it keeps the door locked for around two minutes before releasing it. If the interlock fails, the machine may refuse to start, stop part-way through or keep the door locked.

Common Fault Symptoms

• The washing machine will not start, even though the door is shut.
• The door does not lock when a programme is selected.
• The door stays locked long after the wash has finished.
• The machine stops part-way through a cycle.

Known Compatible Brands & Models

Repair Difficulty

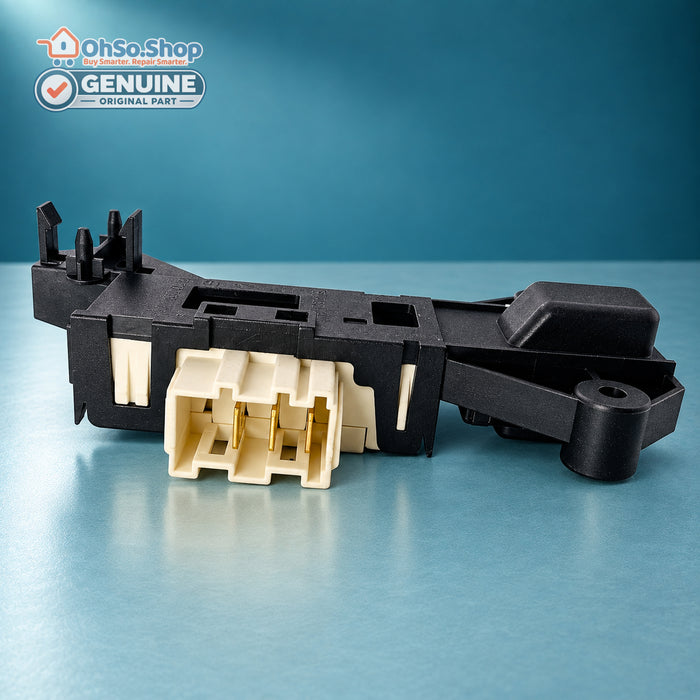

Moderate. The interlock is held to the front panel with two screws behind the door seal. Release the outer seal clamp band, fold the seal back, remove the screws and reach inside to unplug the 3-terminal connector. Take a photo of the wiring before removing the old interlock.

Typical Tools Required

• Torx or crosshead screwdriver (depending on the model)
• Flat screwdriver to release the door seal clamp band

Description

This door interlock is part of the OhSo.Shop Essentials range and is equivalent to 461971093281 (Rold DA series DA069 / 6A069009). It has 3 contacts and is rated 16(6)A 250V closing, 1(2)A 250V opening, T85. It is listed for Whirlpool, Bauknecht, Ignis, KitchenAid, Maytag and Laden washing machines. It is a compatible replacement part, not an original manufacturer part.

The model numbers listed are a sample taken from trusted parts suppliers rather than a complete list. Your model number is usually on a label around the door opening. Interlocks can look alike, so please compare the connector and fixing points with your old part, or send us your full model number and we will check it for you.
